Linear Actuator Wiring Diagram Generator

This handy tool is used to give you the right Linear Actuator wiring diagram depending on your project requirements.

Step 1: Select how many actuators you will be using.

Step 1b: If you selected 2 or more actuators for step one then you are presented with a few extra questions.

Step 2. Pick which control options you wish to use.

Step 3: Add on any additional features, such as a speed controller or external micro limit switch, or even speed control.

Step 4: Remember to press the "GET DIAGRAM" button.

Fill out the requirements for your linear actuator project to generate a custom wiring diagram

Legend

2CH-REM

2 Channel Remote System

DO NOT reverse the red and black connections; red must be connected to 12V+ and black to GND

4CH-RC

4 Channel Remote System

DO NOT reverse the red and black connections; red must be connected to 12V+ and black to GND

FA-POCT

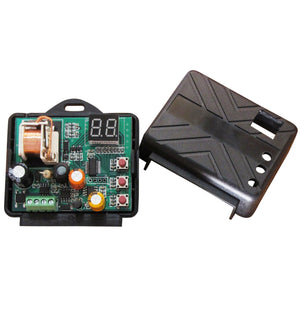

Over Current Protection Module

FA-SYNC-2

DO NOT reverse the power connections; VIN must be connected to 12V+ and GND to GND

EL-KIT

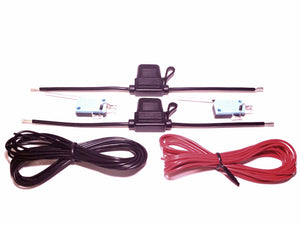

External Limit Switch with Diode

Diode IN4007

We do not sell these, you’ll need to purchase them from a different retailer

DPDT Rocker Switch

MAN-RS, MAN-RS2, WPRS-SUS, WPRS-MOM

Ground

12V+

FA-SYNC-4

FA-SC1

Speed Controller
