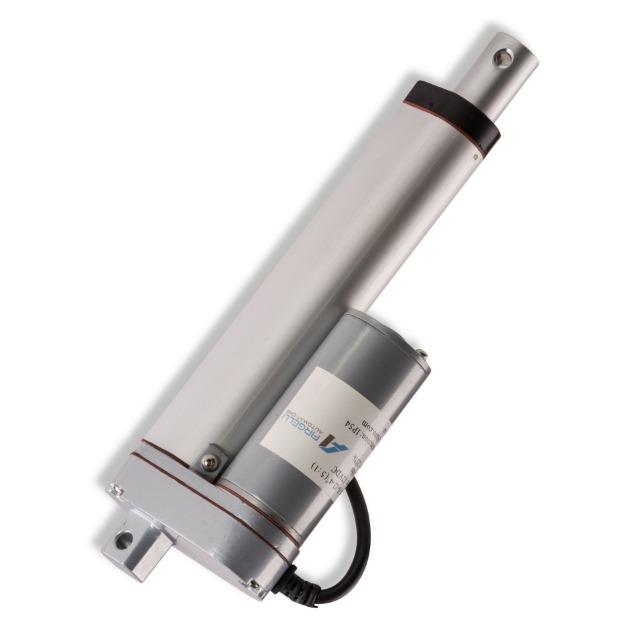

Classic Rod Linear Actuators

Classic Rod Linear Actuators

Firgelli Automations

$132.00 $143.99
Force
Stroke

Share:

The staple diet of any automated application project is Firgelli Automations’ Classic line-up of actuators. Ranging from 35 – 200 lbs. (15 – 91 kg) of force, shipped with built in limit switches, manufactured with high grade aluminum, and coming in various stroke lengths, this is the beginning of most home automation and product automation enterprises.

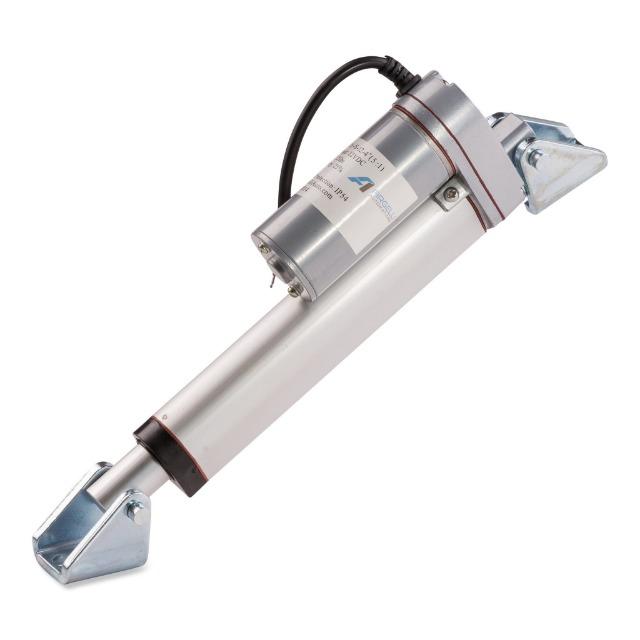

Keeping with our promise of peace of mind and ease of use, we carry heavy-duty, clevis-type brackets which fit via quick release pin on either side of the units; alternatively we also offer brackets which will attach to the body of the actuator, giving you more flexibility in the placement of the unit while reducing the amount of custom fabrication that you may require to have all your components of an assembly work in cohesion. MB1 Mounting Brackets are used with these models.

For added protection against intense environments, we recommend the Hard Case or Rubber Protector

All of our units are CE and ROHS certified, and come with a 12 month mechanical warranty to keep your units serving you best. Our company values revolve around providing quick and friendly customer service that will follow your experience with our products and staff.

Model FA-35-S-12-XX FA-150-S-12-XX FA-240-S-12-XX
Dynamic Force 35 lb 150 lb 200 lb
Static Force 70 lb 300 lb  400 lb
Speed ("/S) 2" .5 .3
Gear Ratio 5:1 20:1 30:1
Duty Cycle 20% at 100% load, 50% at 25% of load, Max 5 mins continous use
IP Rating 54
Input 12v DC
Max Draw 5 A
Clevis End 1/4" diameter
Operational Temperature -26°C/65°C (-15°F/150°)
Limit Switch Built-in (factory preset)
Safety Certifications CE, ROHS
Bracket(s) MB1 and/or MB6
Hard Case FA-CAP
Rubber Protector  RB2



Stroke Retracted Length Extended Length Weight
1" 5.5" 6.5" 2.05 lbs
2" 6.5" 8.5" 2.1 lbs
3" 7.5" 10.5" 2.15 lbs
4" 8.5" 12.5" 2.2 lbs
6" 10.5" 16.5" 2.25 lbs
9" 13.5" 22.5" 2.65 lbs
12" 16.5" 28.5" 3.1 lbs
18" 22.5" 40.5" 3.45 lbs
24" 28.5" 52.5" 3.8 lbs



Light Duty Linear Actuator
