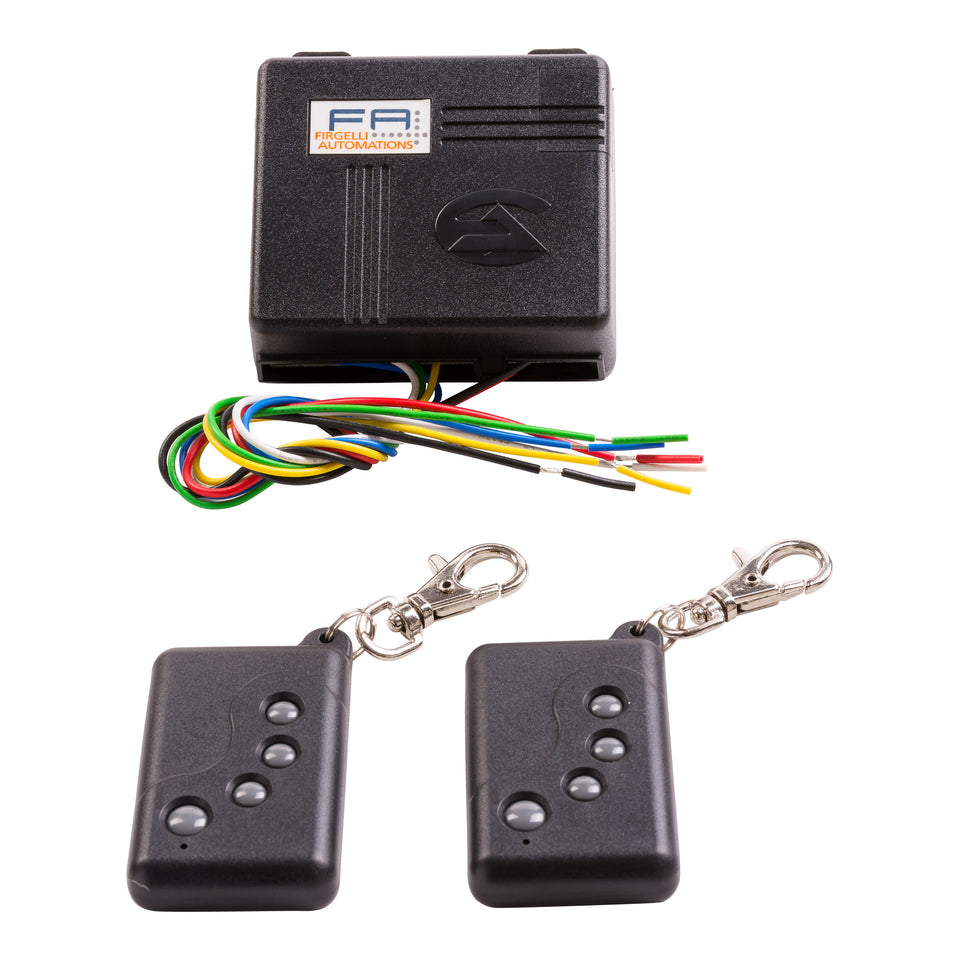

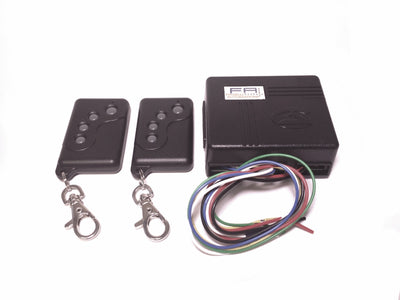

Clients of Firgelli Automations can sometimes run into applications where two actuators need to be run from the same remote, the four channel remote control system is the solution to such designs. Four buttons are ergonomically laid out on each key fob remote, two for each actuator. This wireless RF system works jsut like the two channel remote control system, but offers increased versatility and can support a wider range of applicaitons due to its two extra channels. As a result of the number of options that are available in actuator control, our friendly and experienced staff is at the ready to assist you with your decisions. We can provide you with support prior to your online order, call us on our toll free line today!
Operational instructions and quick facts are located on the 'Specifications' tab for your convenience.
- Radio frequency 310 Mhz
- 2 or 4 channel
- Programmable remotes
- Each remote has 4 buttons, 2 buttons per actuator
- 2 modes - sustaining (latching), or momentary
- Requires 12VDC input (not included)
- 5 AMP fuse should be used to protect the remote system

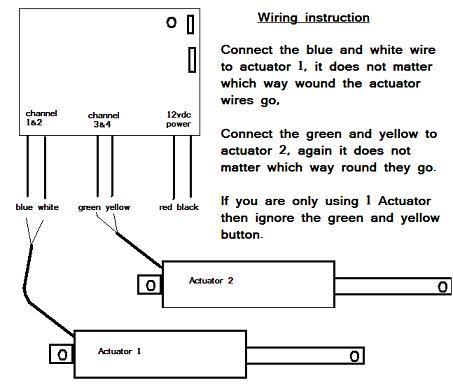

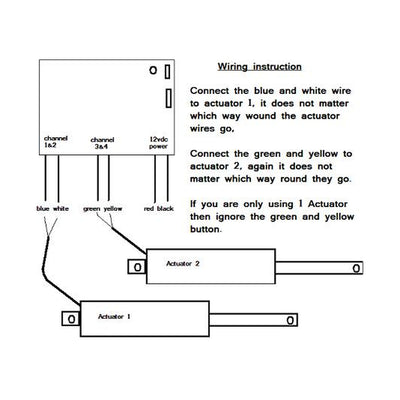

- Easy to wire actuators to 4 channel remote control system
- Rated to 10 amps per channel

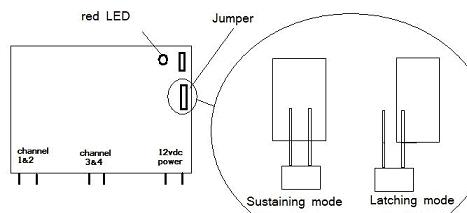

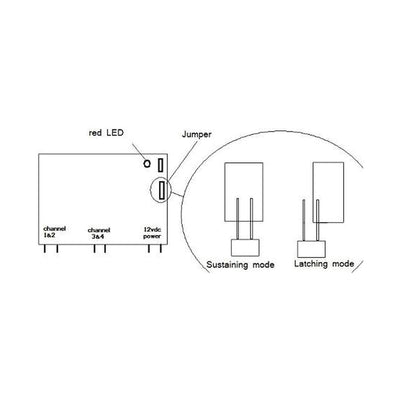

To change from Sustaining to Latching mode
The remote system come programmed in Sustaining mode, this means that the actuator will move for as long as your finger is held on the button. In Latching mode you only have to press the button once and the actuator will go all the way to the end.
To change all you have to do is open up the case on the receiver and remove the jumper that connects 2 pins together and place it on just 1 pin, then you need to remove the power to the remote receiver and then apply the power again, this resets the system.

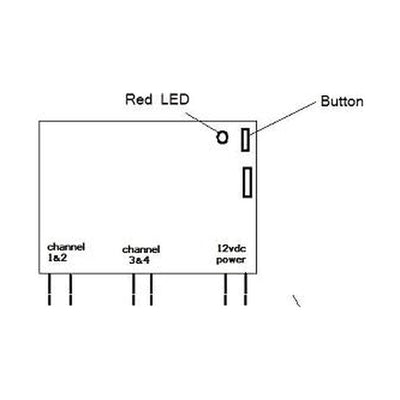

Programming more remotes
To program more remotes you press and hold the button on the circuit board, you will have to open the case first. Hold the button for a few seconds until the red LED flashes. Then press any button on each of the remotes you want to program, 1 at a time, so if you have 4 remotes you need to program all the remotes, even if they were already programmed, and just press any one of the 4 buttons on each remote. Then remove the power from the receiver and plug it back in again. Now all remotes should work with the receiver
