Industrial Heavy Duty Actuators
Industrial Heavy Duty Actuators
Description
***DISCONTINUED. WILL NO LONGER BE AVAILABLE IN 2025***

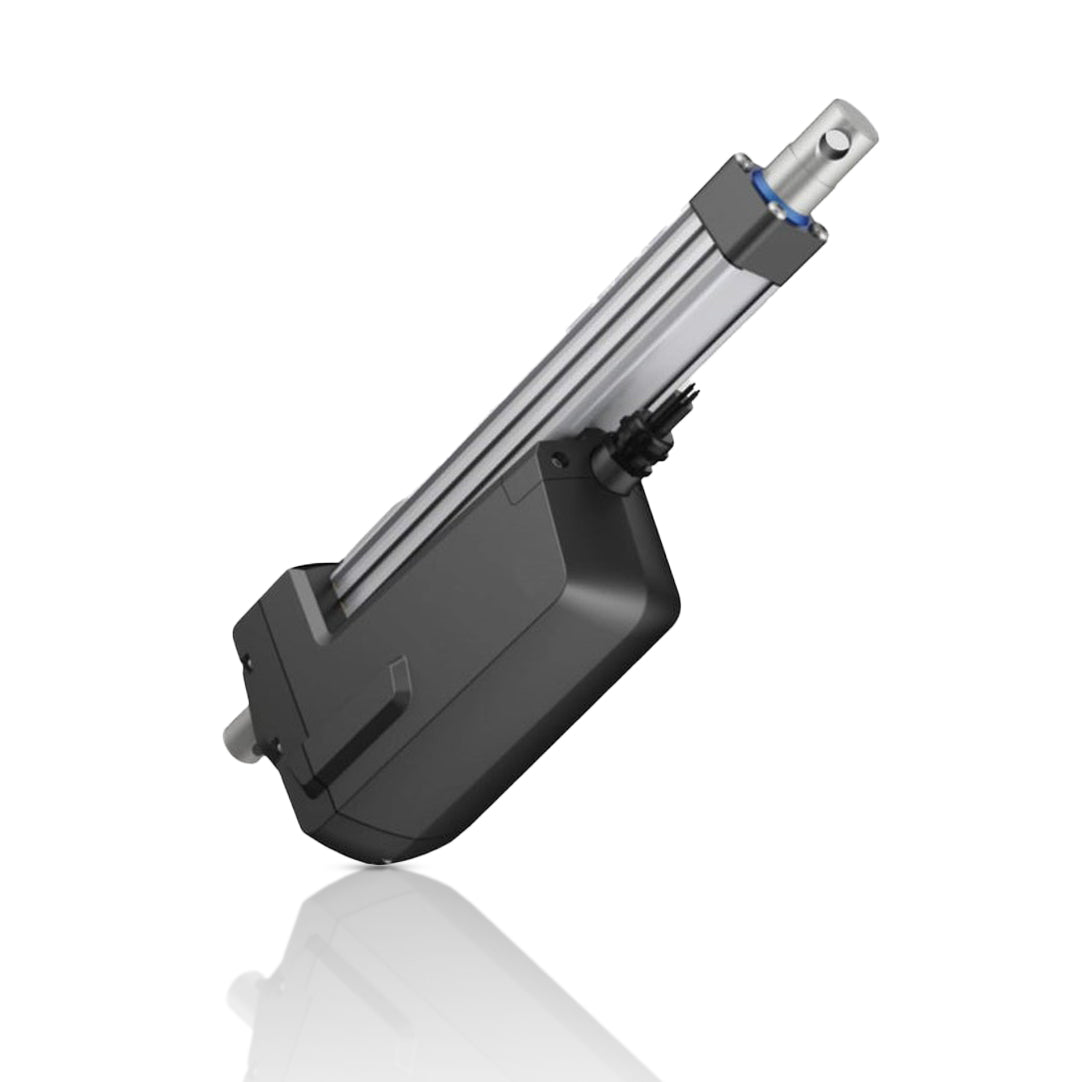

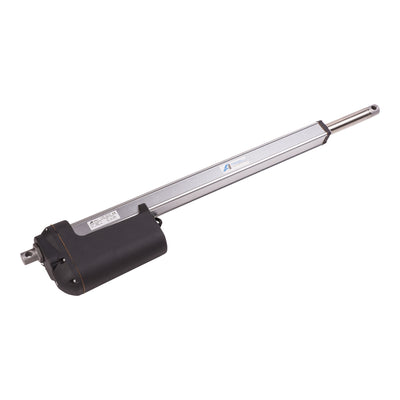

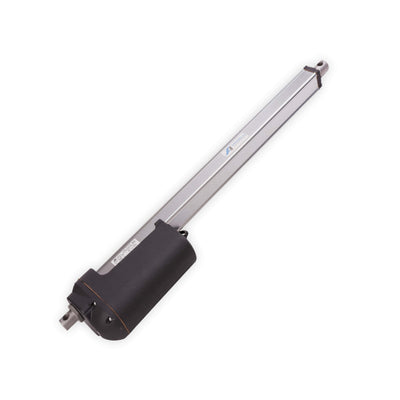

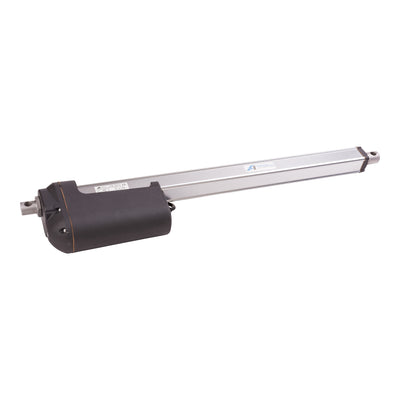

The FIRGELLI® Industrial Heavy Duty Linear Actuators are for doing the major lifting, they can push or pull with up to 2,200 lbs. force. Made from tough hardened steel these units are ideal for industrial applications. The FIRGELLI® Heavy Duty Linear Actuator is one of the most rugged actuators you can find on the market today. It incorporates all the experience we have gained from making linear actuators for our wide range of industries.
Instructions for rotating the Base-end Clevis Hole can be found here.
CAD models for this actuator can be found under Resources/3D Files. For further information review the specifications and technical drawings down below or visit our tutorials page for instructions on how to use this actuator with switches, remotes, speed controllers, and Arduino.
Specifications
| Part Number: | FA-HD-2200-XX | FA-HD-2200-XX-24 |
| Voltage: | 12 | 24 |
| IP Rating: | 66 |
| Connection: | Bare wires |
| No Load Speed ("/s): | 0.5 (12.7mm) |
| Gear Ratio: | 40:1 |
| Error range: | +3mm |
| No-load max Amp: | 4.5A |
| Full load speed: ("/s) | 0.17 (4.5mm) |
| Full load max Amp: | 20A |
| Dynamic Load: | 10,000N (2,200 lbs.) |
| Static Load: | 9,000N (2,000 lbs.) |
| Clevis hole dia: | 0.5" (13mm) - both ends |
| Limit Switches: |
Internal, End of stroke. Non-Adjustable |
| Feedback | |
| Duty Cycle: | 25% if operating above 65°C (150°F) or 100% if operating below 65°C (150°F) |
| Maintenance: | None (Sealed Unit) |
| Temp. Range: | -40*F - 149*F (-40*C - 65*C) |
| Drive Type: | Spur Gear |
| Feature: | Overload Clutch Protection |
| Certification: | CE |
Technical Drawing
Performance Graph
3D Model Downloads (.STEP)
2200lb Force
Wiring Diagram
Click here to view our wiring diagram generator to help you set up your actuator system
