Premium Linear Actuators

Premium Linear Actuators

Firgelli Automations

Stroke Length

When we first designed our Standard Linear Actuators we didn't think they could get any better, turns out we were wrong.

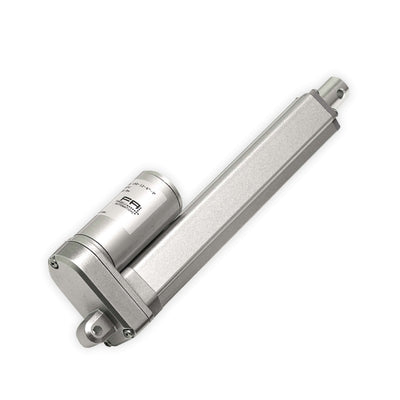

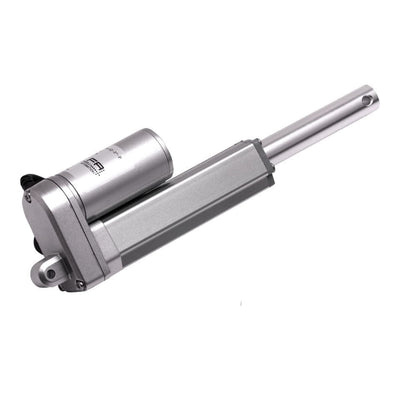

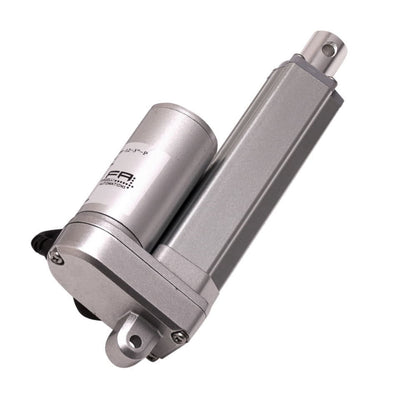

We're proud to introduce our new line of Premium Linear Actuators. A quality Linear Actuator is the backbone or starting point of any automated application project and these new Premium units do the job better than ever before.

Based on our popular Standard Light Duty Linear Actuator models, the Premium units retain the same compact and versatile body shape while incorporating several upgraded design features that provide:

  1. Enhanced corrosion resistance

  2. Longer unit life

  3. Quieter operation

  4. Increased durability

  5. Higher IP Rating - IP65 protection class offers total dust and debris protection and can withstand low pressure jets of water from any direction, such as those used in cleaning procedures.

  6. Low noise design - operates at just 20 DB over ambient.

  7. Zinc alloy housing provides an excellent combination of strength, ductility and impact strength.

  8. Save time and money with less repair downtime and maintenance hassle.

  9. Optional Optical Sensor for feedback control. *Available upon request as a custom option

There are three force options available (35, 150, and 200 lbs); all three force options of the Premium Linear Actuators are capable of 500lbs static force. These units come equipped with built-in limit switches, are manufactured with high-grade aluminum outer and inner tubes, and come in various stroke lengths, these Premium Linear Actuators are the beginning of most home and product automation enterprises.

All of our units are CE and ROHS certified, and come with a 12 month mechanical warranty to keep your units serving you best. Our company values revolve around providing quick and friendly customer service that will follow your experience with our products and staff.

Model FA-35-12-(X)-P FA-150-12-(X)-P FA-240-12-(X)-P
Dynamic Force 35 lbs 150 lbs 200 lb
Static Force 500 lbs 500 lbs 500 lbs
Speed ("/S) 2.0" .30" .24"
Gear Ratio 5:1 20:1 30:1
Duty Cycle 25%
IP Rating IP66
Sound Rating 20 dB over Ambient
Input 12v DC
Max Draw 5 A
Clevis End 1/4" diameter
Operational Temperature -26°C/65°C (-15°F/150°)
Limit Switch Built-in (factory preset)
Safety Certifications CE, ROHS

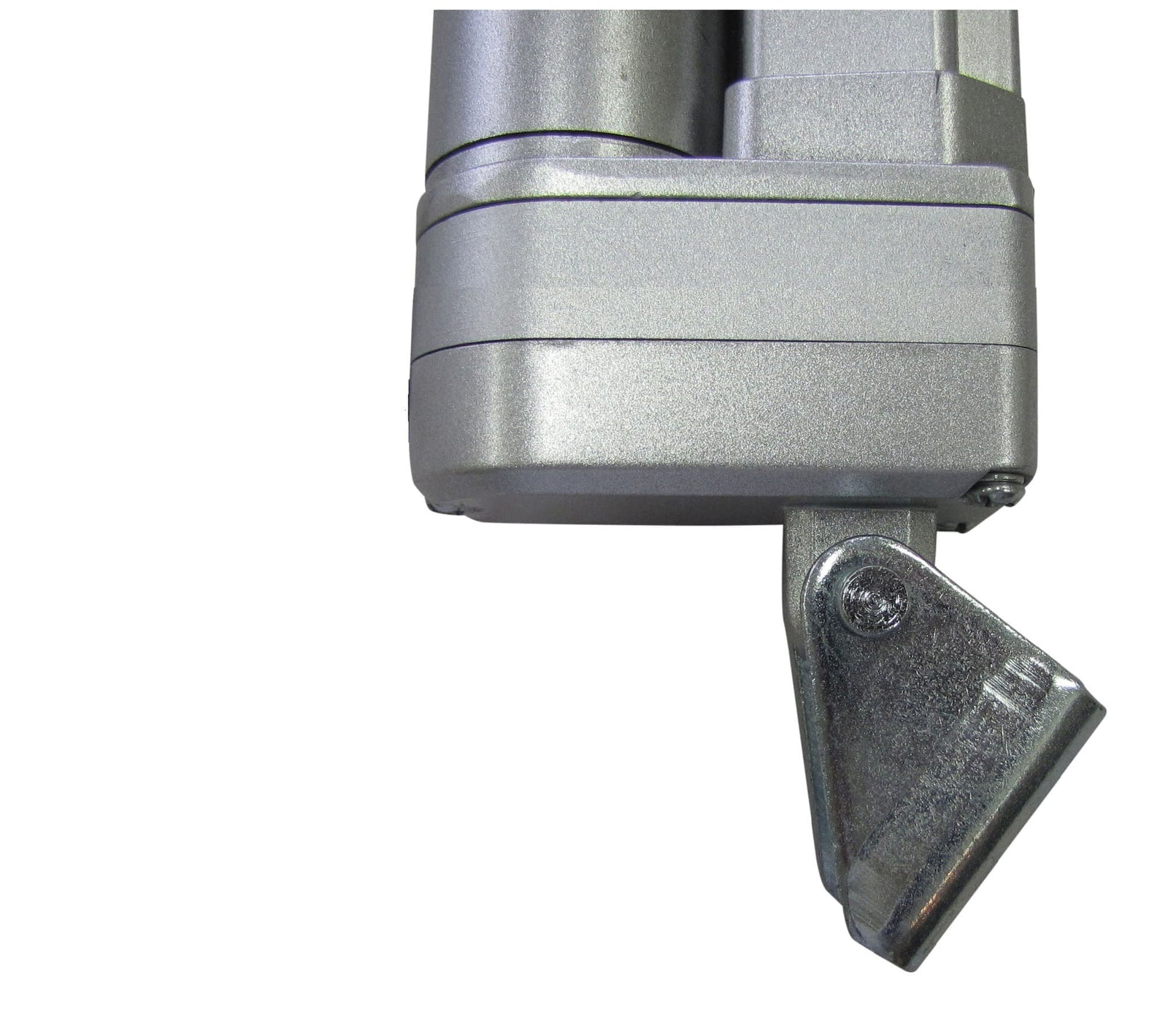

Bracket(s)  MB1-P

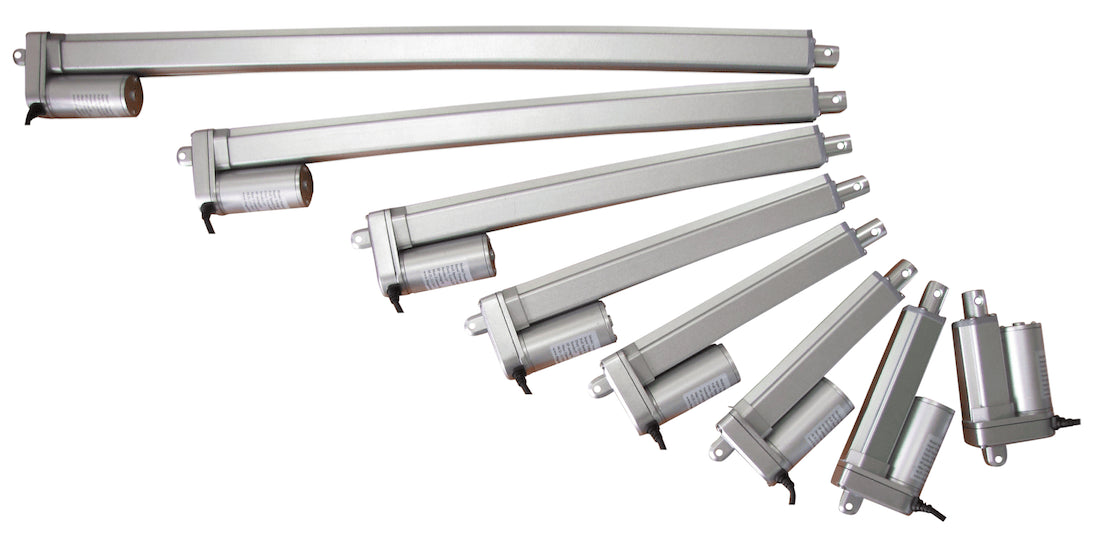

Stroke  Retracted Length Extended Length Weight (lbs)
1"  5.53"  6.53" 1.60
2"  6.53"   8.53" 1.68
3"  7.53"   10.53" 1.84
4"  8.53"  12.53" 1.92
6"  10.53"   16.53" 2.12
9"  13.53"  22.53" 2.48
12"  16.53"  28.53" 2.78
18"  22.53"  40.53" 3.40
24"  28.53"  52.53"  4.02
30"  34.53" 64.53" 4.68

Premium Linear Actuator Tech Drawing

35, 150, 200 lb Force Variation Motor Characteristics
