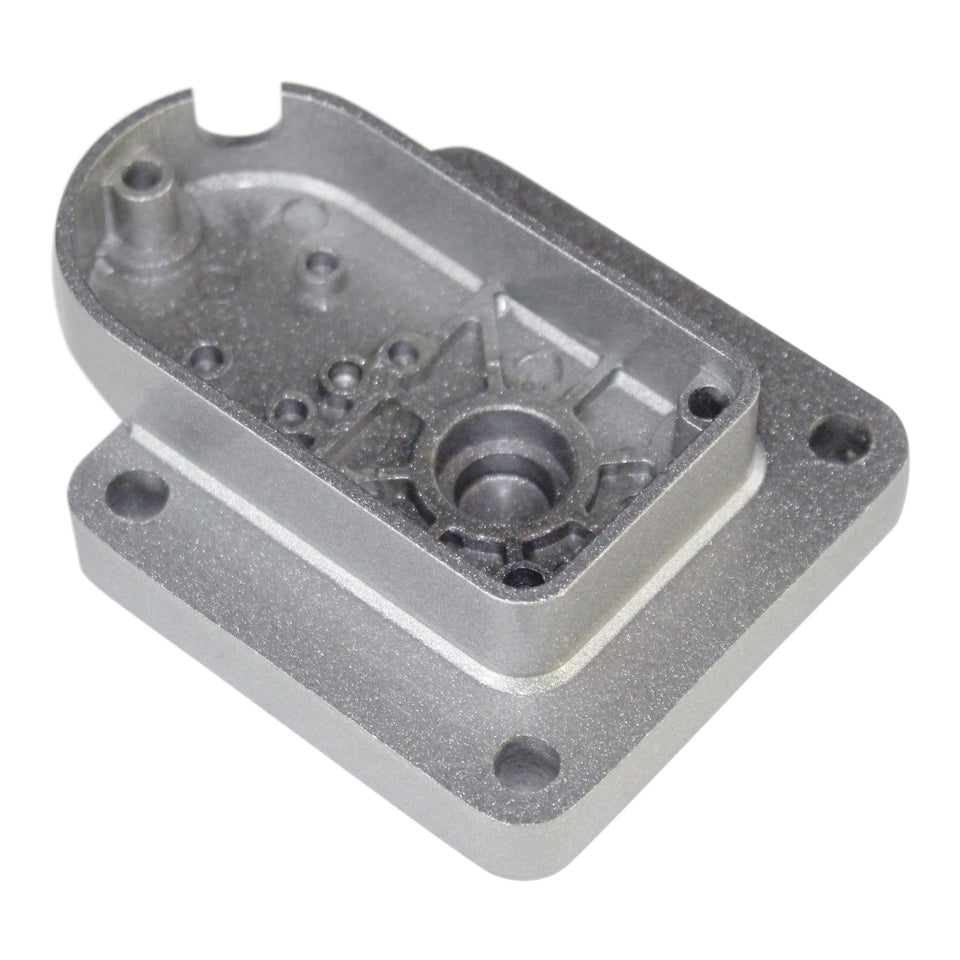

Base Mounting Bracket

Base Mounting Bracket

CAD
Model #
Select Actuator Model
Quantity
qty limit cart limit
In Stock

Add Liquid error (snippets/form-product line 312): Could not find asset snippets/warranty-plus-text.liquid +8%
View Cart

Shipping Cost Estimator

Note: You must have items in your cart already before you can see the estimated costs to ship your cart. This shipping tool will estimate the total shipping cost for your entire basket.

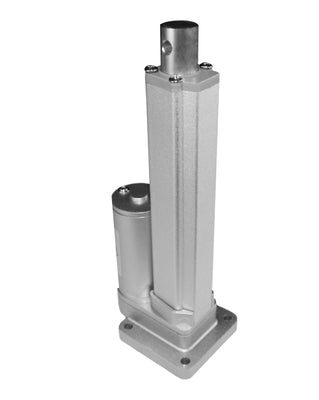

This Base Mounting Bracket Converts the Premium Actuators or Optical Feedback Actuators to a Column Lift style Actuator. To install them you unscrew the 2 screws off the back of the actuator (watch the video below) and replace them with the screws that come with the bracket. The Optical Actuator bracket (FA-OS-IMD3) comes with longer screws to fit through the body.

This bracket was specifically designed to work with our Premium Actuators and Optical Feedback Premium Linear Actuators.

*NOTE: Does NOT fit the 400 lb. force in the Premium or Optical Feedback Actuators.

Technical Drawing

3D Step file


Video

How to convert Premium Actuators using this Base Plate Bracket
