Need a Micro Pen Actuator that delivers the premium results you're looking for? The Firgelli Micro Pen has been specifically designed to provide the performance you need, no matter what the nature of your business may be.

Durable, High-grade Components

Each Micro Actuator comprises high-grade components that have been built to a demanding specification and put together by time-served engineers. The result is a premium product that has been designed to deliver highly accurate results, even in challenging conditions.

Created to provide robust, consistent performance, Micro Linear Actuators offer a dependable solution to your design and production requirements, no matter what your operation might be.

Exceptional Performance

If performance matters to you, then look no further than this actuator. This Micro Actuator offers overload protection, which minimizes the risk of unexpected failure when it matters most. We also offer a Feedback version here if required.

Modest Dimensions for Optimum Versatility

One of the main reasons why a growing number of companies are choosing this Micro Pen Actuator for their operations is its relatively small dimensions — measuring just 16mm in diameter, it's still capable of offering forces up to 100N (22lbs) at the same time as providing stroke lengths up to 100mm (10cm or approximately 3.93701 inches).

The Micro Pen Actuator is Suitable for a Wide Range of Applications

Whether you have a robotics operation and need a suitable actuator that will deliver the results you're looking for or are involved in some form of consumer electronics, a Micro Pen Actuator could be exactly what you need. It's also a good option if your product has hidden flaps or panels that require specialist work.

This actuator is a versatile piece of equipment that's useful for environments where a high level of accuracy and detail is essential to good results.

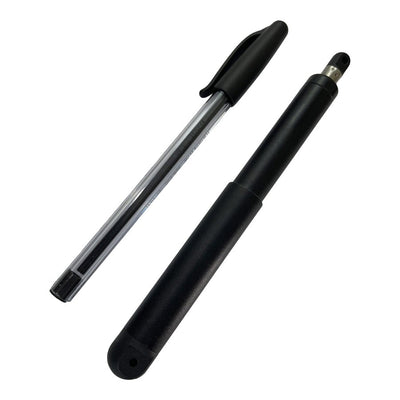

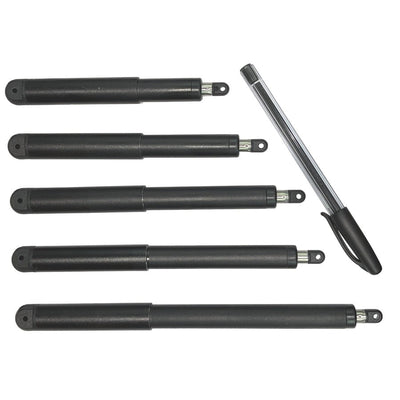

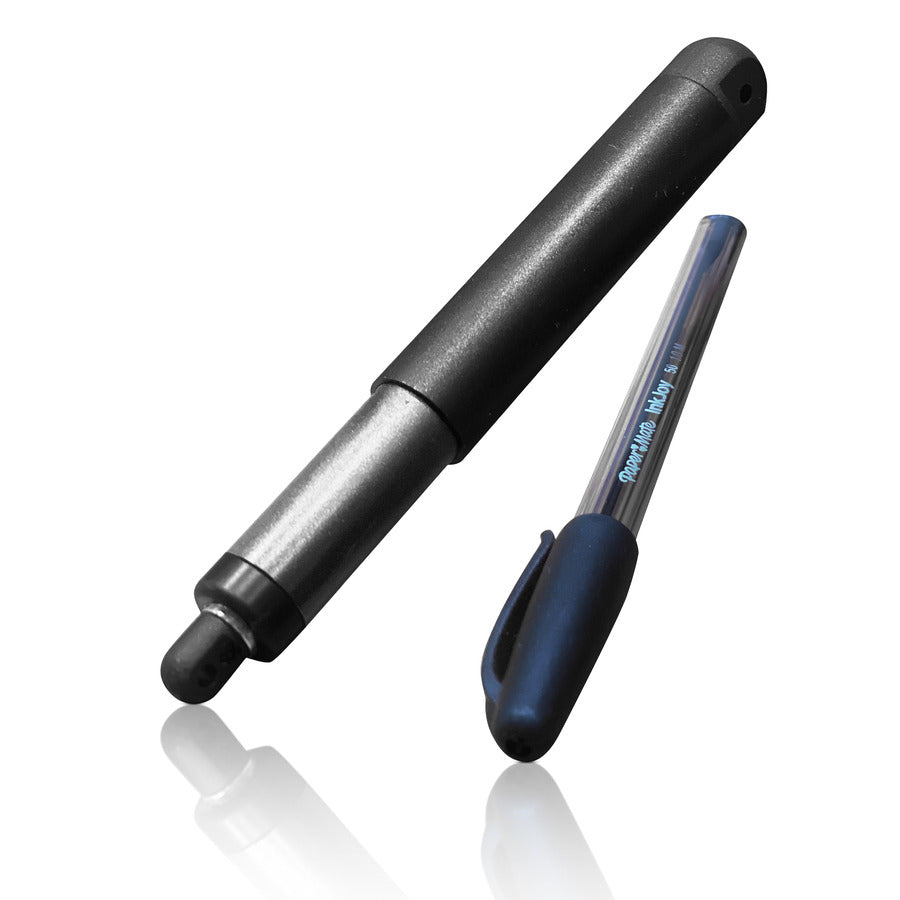

The FIRGELLI® Micro Pen Linear Actuator is only 16mm in diameter yet packs a punch and also offers overload protection in a tiny package. This model offers two force options: 20N (4.5-lbs) and 100N (22-lbs) with stroke lengths of 20mm, 40mm, 60mm, 80mm, and 100mm. These Micro Actuators are inline, which is why the form factor of only 16mm in diameter at its largest point is so small, giving you the ability to fit them into the smallest spaces for the ultimate in hidden motion control capabilities.

Mounting Points

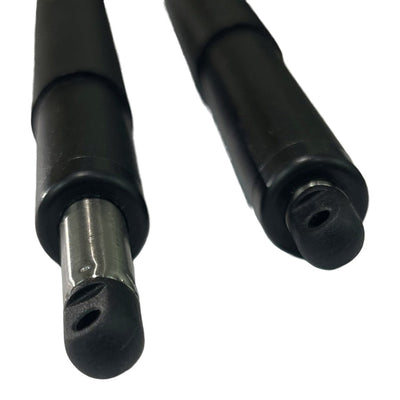

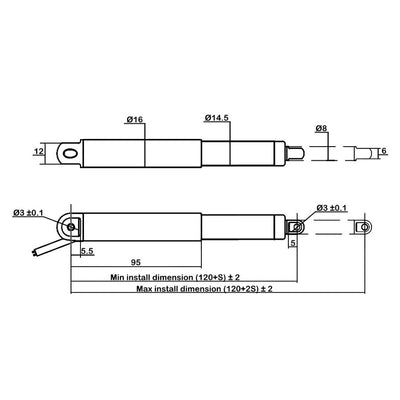

Mounting these Micro Actuators is simple. Each end of the actuator has two clevis holes that are 3mm in diameter (0.118") so that a 2–3mm screw can be used to secure them. In addition, the moving end shaft of the Micro Actuator is able to rotate up to 180 degrees, so the holes do not need to line up with the motor end of the actuator body.

Mounting the body of the actuator is also an option — you can mount to the durable plastic motor body or the aluminum shaft if desired. The benefit of using the two round clevis holes is that the actuator is able to rotate and swivel as it moves, which is ideal for many applications.

Control Options:

These Micro Actuators use a simple 2-wire configuration. You simply supply a 12v DC power source to make the actuator move, and reversing polarity will change its direction. Most people use a Rocker-Switch to perform this action, or perhaps a remote control system with two buttons (Up and Down).

These Micro Actuators are well suited for RC model toys, robotics, consumer electronics, hidden flaps & panels, and more.
