FIRGELLI Actuator speed controllers changes the speed of the linear motion in your actuators and allow voltage adjustments. Use the adjustment knob to fine tune the speed exactly how you want it.

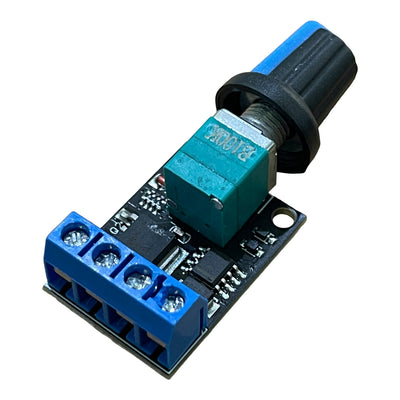

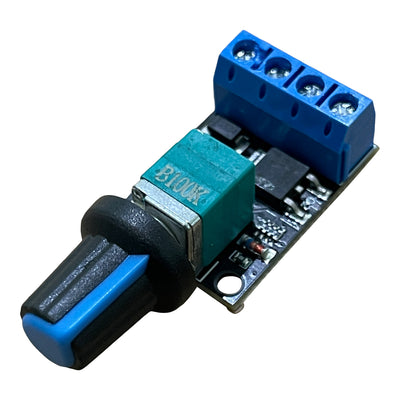

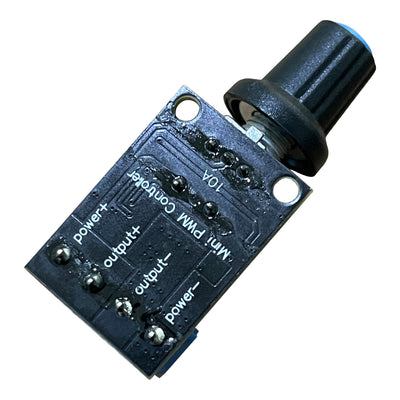

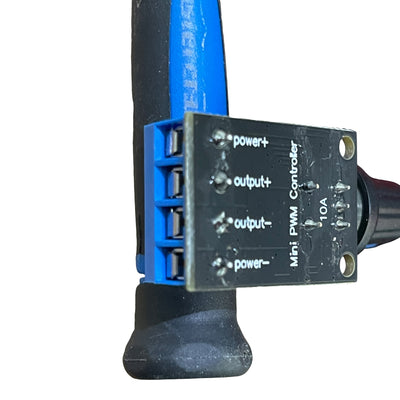

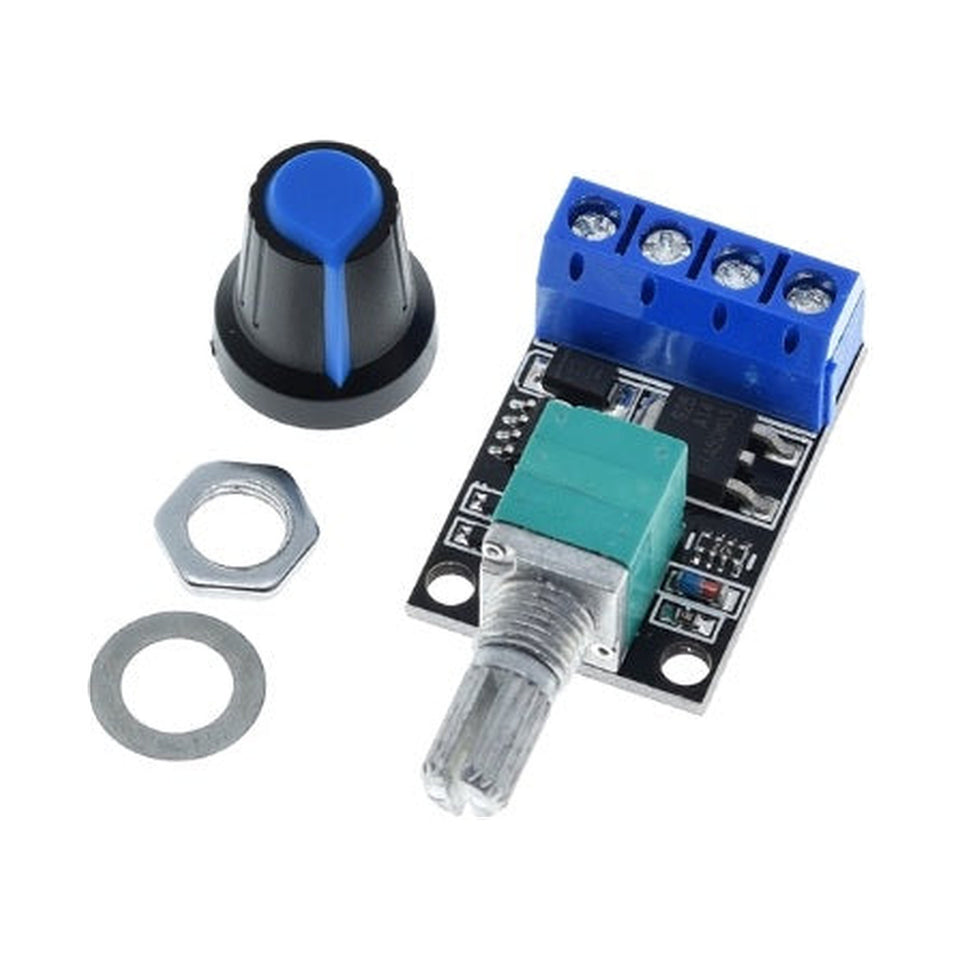

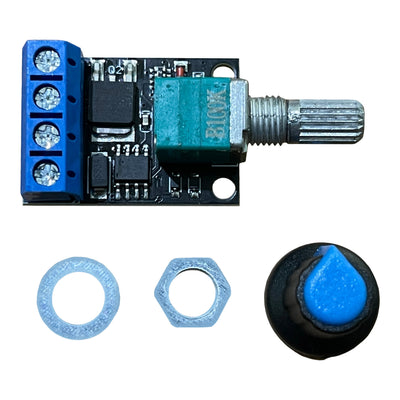

This is a 10A max PWM Motor Speed Controller with a 2-24v dc input, Speed Controller PWM Adjustable Drive Module.  Wiring is simple, 2 wires in and 2 wire out to a switch or directly to an Actuator or motor.

The Firgelli Automations Speed Controller allows you to control the speed of our Actuators up to a maximum current rating of 10A and all our gear motor products. Designed using a motor controller and high frequency Pulse Width Modulation (PWM) you are able to control the speed of your Actuator/Motor with minimal impact on the force output.

Additional Info

You can reduce the speed to a standsill if required. Will control the Actuator or Motor in either direction. If you need to have a different speed in the reversing direction then you need to add an extra speed controller.

The FA-SC2 is intended to control the speed of one Actuator/motor.

The maximum current capability of the unit is 10A,, even two small actuators connected together to the Speed Controller could draw a startup surge current exceeding 10A which will damage the unit. Please note if you adjust the speed it will also change the speed when you reverse the actuator.

Specifications

Wiring Diagram
