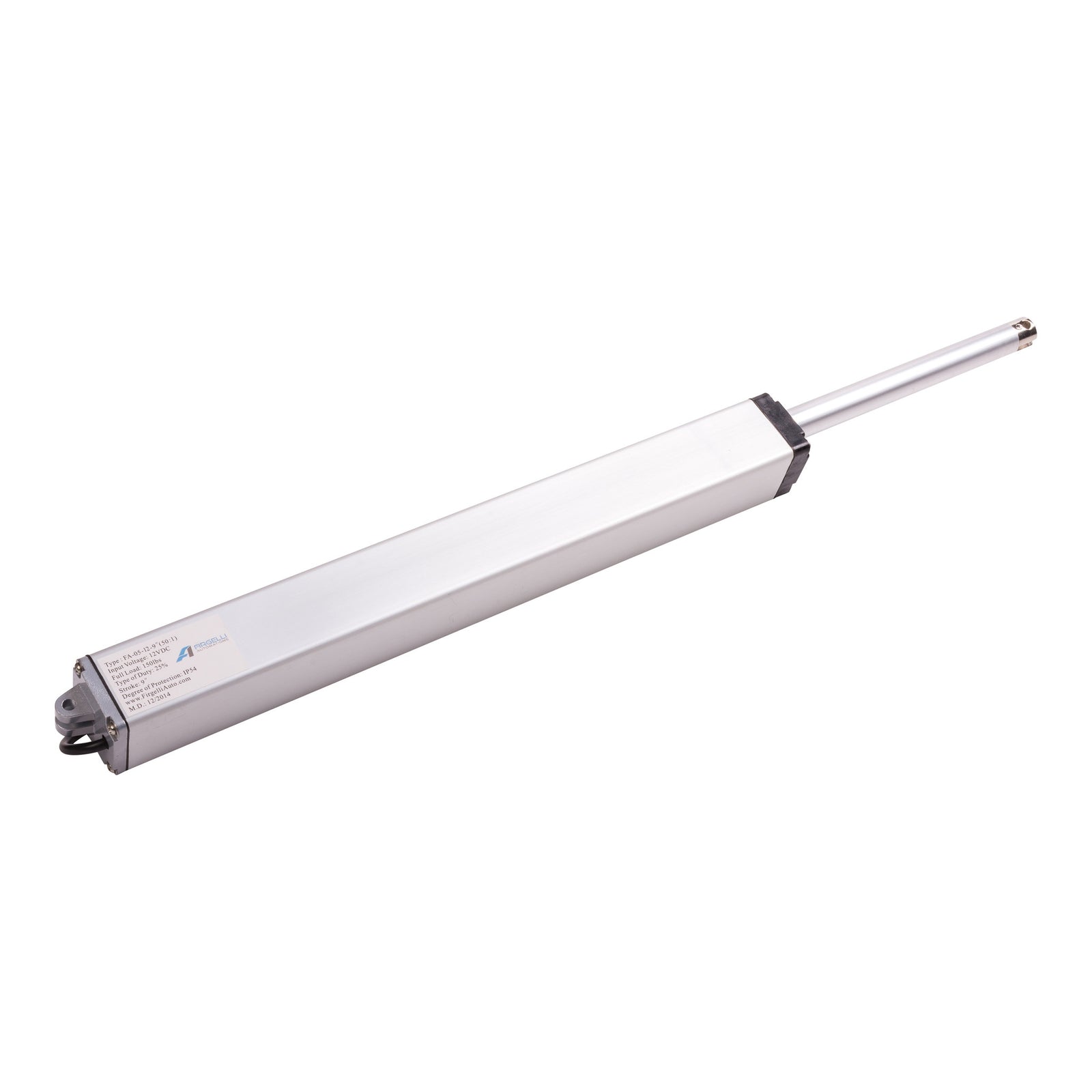

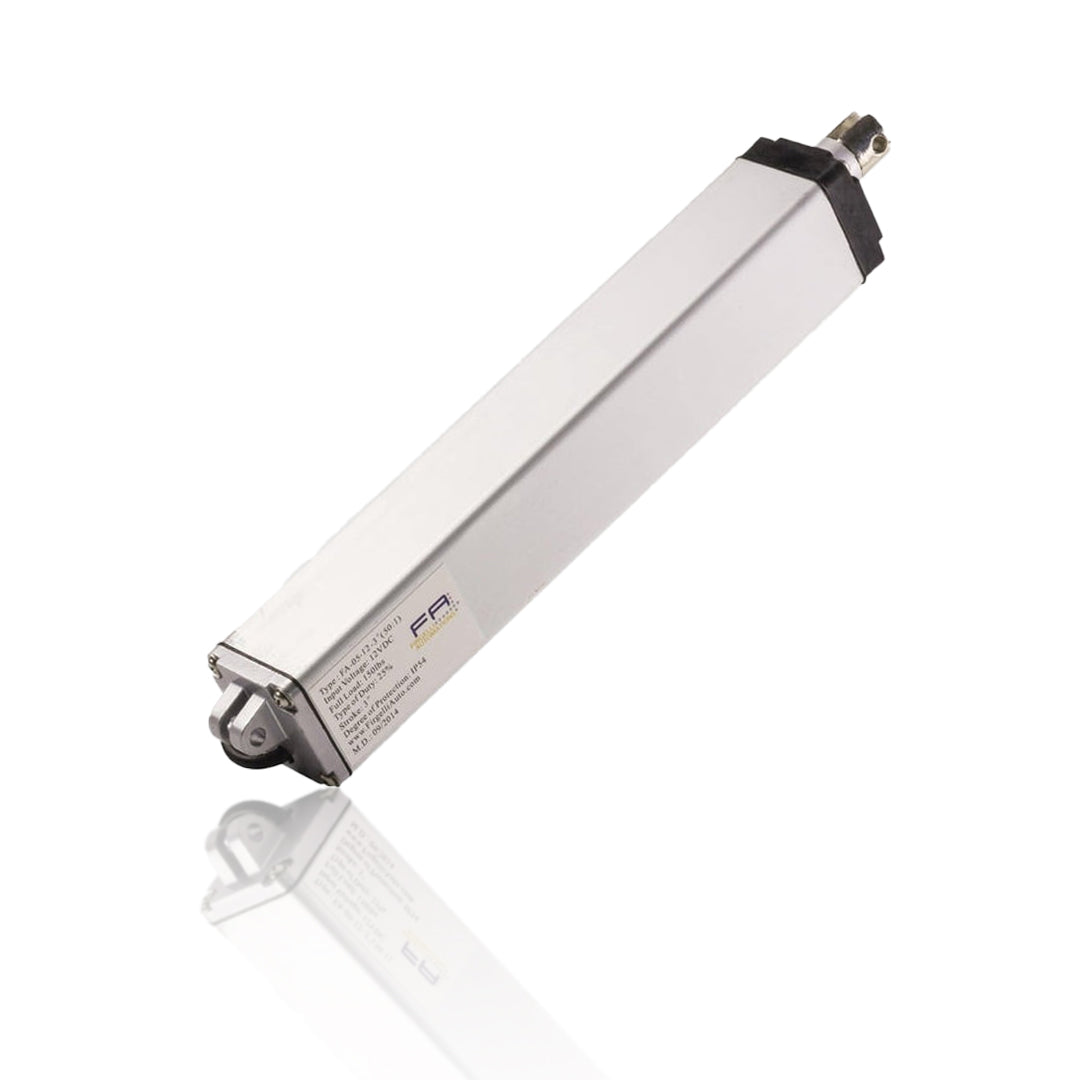

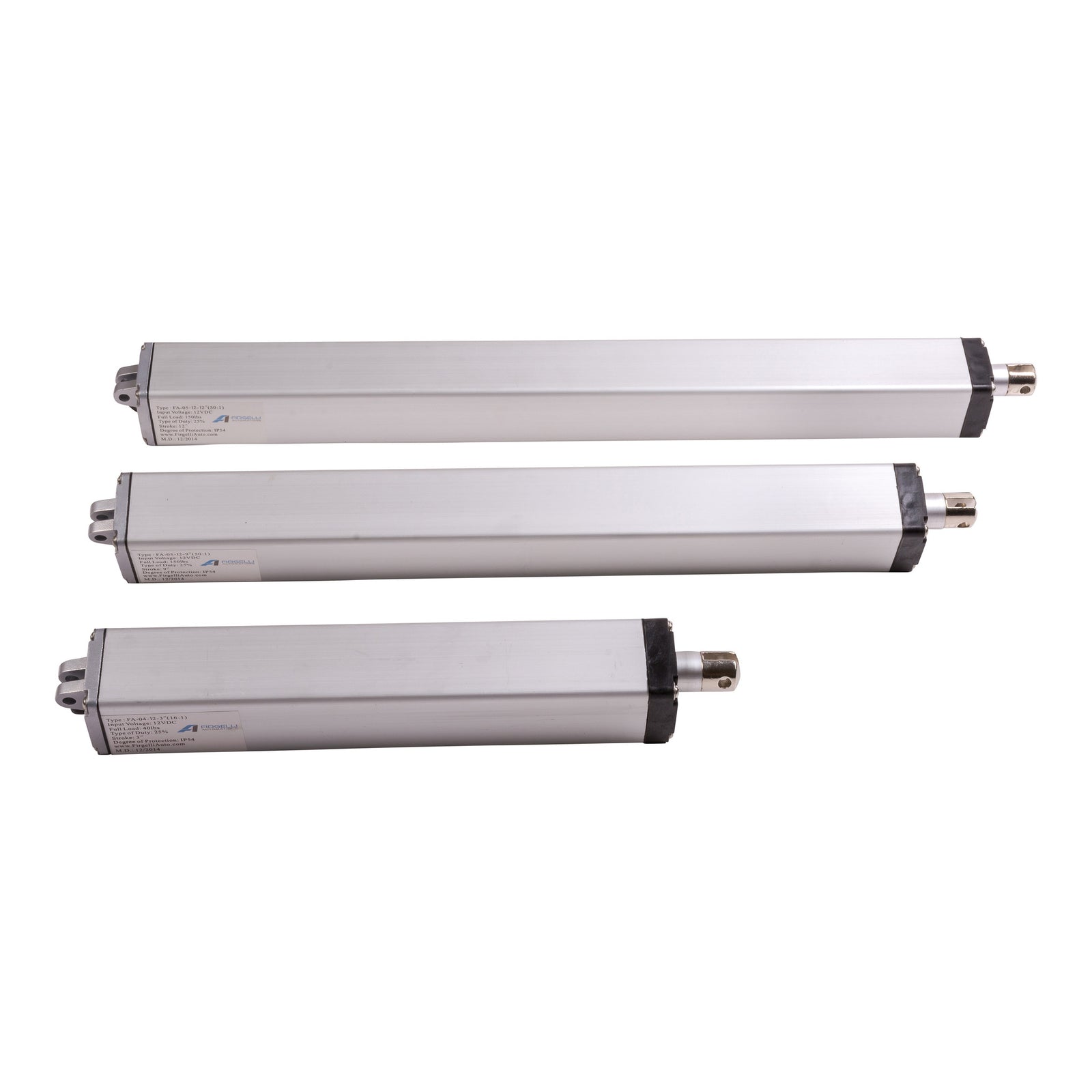

Sleek Rod Tubular Linear Actuators

      Sleek Rod Tubular Linear Actuators

      CAD
      Model #
      Force
      Stroke
      Quantity
      Bulk Discount

      Save on your order when purchasing our Actuators in large volumes. Discount will be calculated at checkout.

      Min. Quantity Discount
      11 20 % OFF
      31 25 % OFF
      50 30 % OFF
      200 40 % OFF
      qty limit cart limit
      Spec Sheet

      Description

      Our Sleek Rod Actuator line was produced for applications which require a clean looking, modern appearance instead of having a hidden system. The minimalist presentation of these units and angular lines make this actuator line-up worthy as a showpiece itself. The unit comes in two force variations: 40 lbs and 150 lbs. Both dynamic force variations are quiet and smooth in operation. For those who want a good looking, high quality linear actuator to fulfill their project needs, this is the solution for you. All variations of the Sleek Road Actuator line feature built in factory limit switches, internal dynamic O-rings for water protection which provides an IP Rating of 54, as well as clevis mounting points at both ends for versatility.

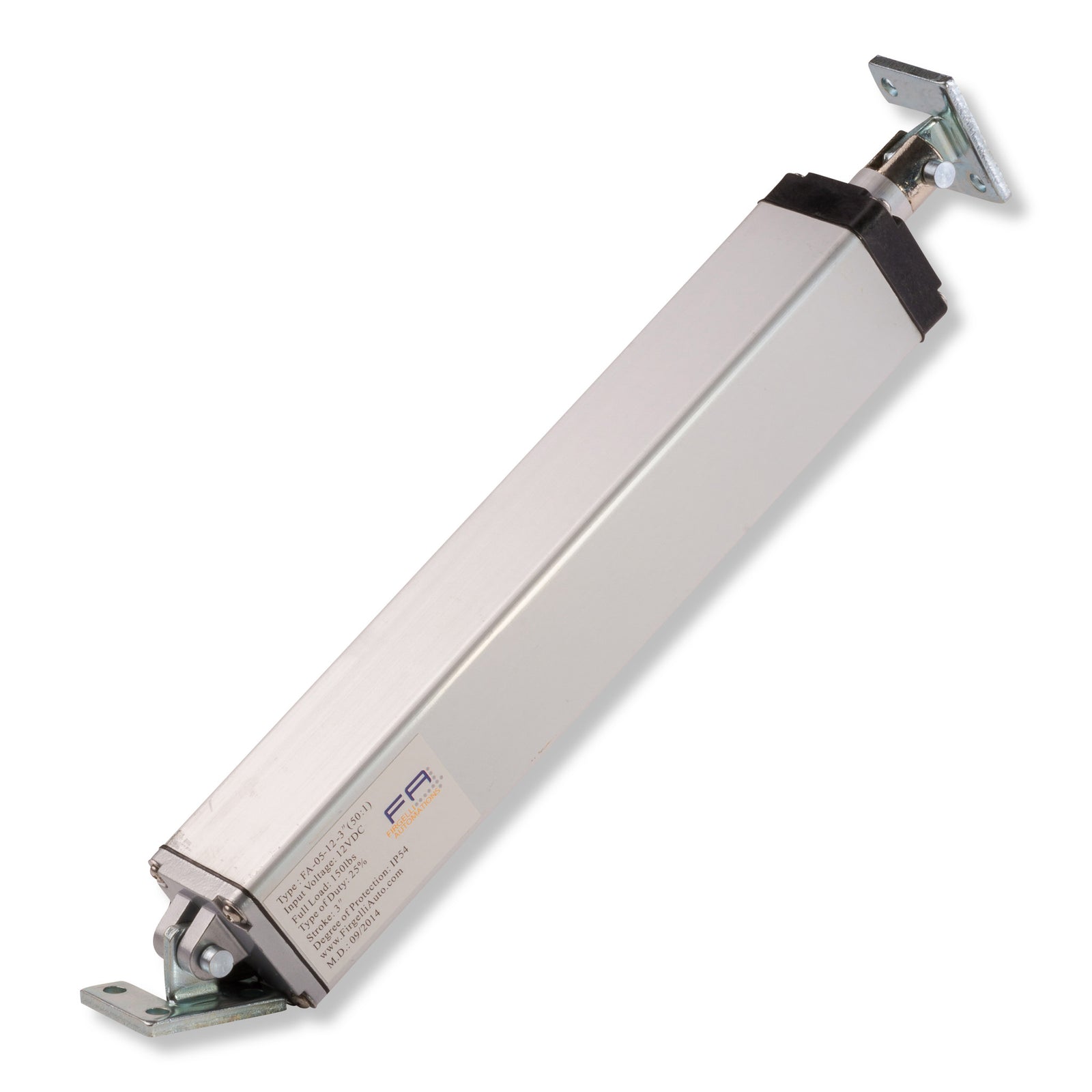

      MB2 Mounting Brackets are used with these models.

      Specifications
      Model FA-04-12-XX FA-05-12-XX
      Dynamic Force 40 lb 150 lb
      Static Force 80 lb 300 lb
      Speed ("/S) 1" .5
      Duty Cycle 25%
      IP Rating 54
      Input 12v DC
      Operational Temperature -26°C/65°C (-15°F/150°)
      Limit Switch Built-in (factory preset)
      Safety Certifications CE, ROHS
      Bracket(s) MB2
      Draw at Full Load 3 Amps
      Stroke Retracted Length Extended Length Weight
      3" 11.5" 14.5" 2.5 lbs
      6" 14.5" 20.5" 2.9 lbs
      9" 17.5" 26.5" 3.25 lbs
      12" 20.5" 32.5" 3.7 lbs
      18" 26.5" 44.5" 4.5 lbs
      24" 32.5" 56.5" 5.3 lbs
      30" 38.5" 68.5" 6.5 lbs
      Technical Drawings

      Sleek Rod Actuator Dimensions
