Motorized Flip Down TV Ceiling Mount
Motorized Flip Down TV Ceiling Mount
Instruction Manual MFD 42
Instruction Manual MFD 70
Description

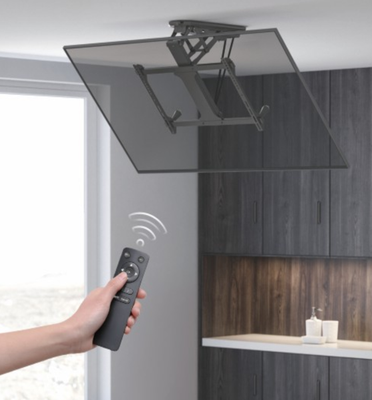

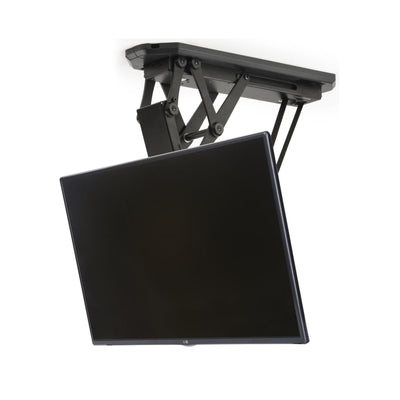

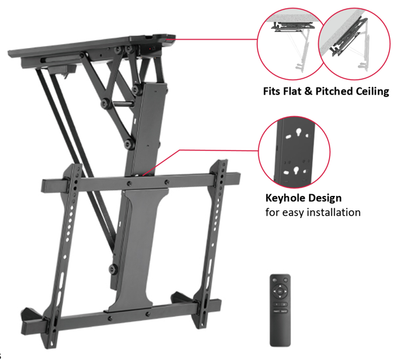

The Firgelli Motorized Ceiling Flip Down TV Mount offers you the possibility to mount your TV in the ceiling or on a pitched ceiling even. Press the button on the remote button and the TV quietly and smoothly flips down to the position you want with the ability to also program a certain position you prefer.
The Motorized Ceiling Flip Down TV Mount supports all TVs from 19"- 70" Max weight of 70 lbs. The angle goes from 0 to 75 degrees. This mechanism is ideal for hiding your TV up in the ceiling and then the TV drops into your viewing angle. This Flip Down Ceiling TV Mount Mechanism offers many possibilities and options for configuration, installation is very easy through our flexible design. These Flip down Ceiling TV Lifts are plug and play, you simply just need a power source to operate them.
Specifications
| Model: | FA-MFD-42 | FA-MFD-55 *DISCOUNTINUED* | FA-MFD-70 |
| TV Size | 19 inch - 42 inch | 32 inch - 55 inch | 32 inch - 70 inch |
| Input: | 100V - 240V 50-60 Hz 1a | ||
| Output: | 24V 1.5a | ||
| By Mounting Pattern: | 100mm or 200mm | 100mm, 200mm, 300mm or 400mm | 200mm, 300mm, 400mm or 600mm |
| Material: | Steel, Plastic | ||
| Thickness of entire unit: | 4 inches (102mm) | 4 inches (102mm) | 4.3 inches (108mm) |
| Surface Finish: | Powder coating, Plastic | ||
| Available Color: | Black | ||

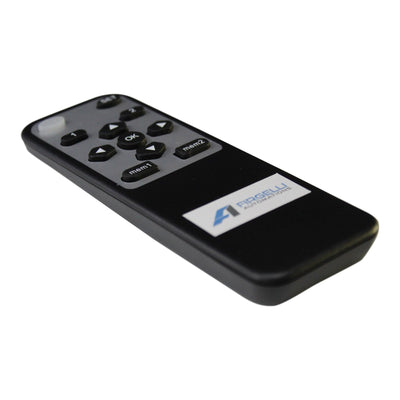

| Control: | RF | RF | |
| Product Size With Open Position: |
557mm x 435mm x 108mm (21.9" x 17.1"x 4.0")
|
|
557mm x 435mm x 108mm (21.9" x 17.1"x 4.3") |
| Rated Load: | 70 lbs. | ||
| Temperature Range: | -5 to 40 degree Celsius | ||
| Level Adjustment: | ±3° | ||

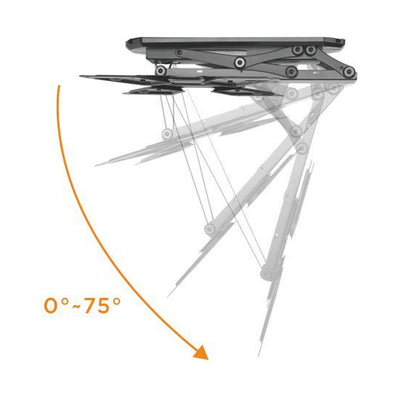

| Tilt: | 0-75° | ||
| Bubble Level: | No | ||
| Cable Management: | Yes | ||
| Motorized: | Yes | ||
| Curved TV OK: | Yes | ||
| Certification: | CE /CE REACH 173 | ||
| Power Plug: | Yes | ||
| User Manual : | Yes | ||
| Installation time: | 1-2 Hours |
Product Videos

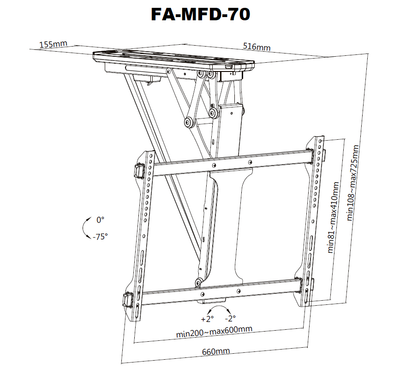

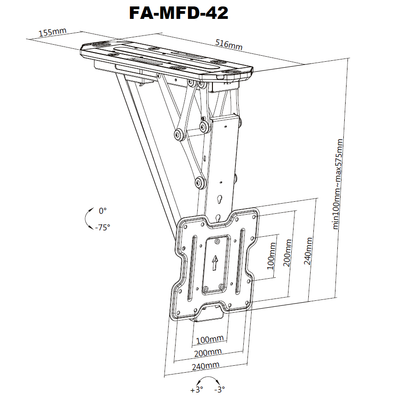

Product Dimensions
