MB1-P Mounting Bracket for P-series Actuators

      MB1-P Mounting Bracket for P-series Actuators

      CAD
      Model #
      Quantity
      qty limit cart limit
      In Stock

      Add Liquid error (snippets/form-product line 278): Could not find asset snippets/warranty-plus-text.liquid +8%
      View Cart

      Shipping Cost Estimator

      Note: You must have items in your cart already before you can see the estimated costs to ship your cart. This shipping tool will estimate the total shipping cost for your entire basket.

      Description

      Mounting bracket for our Premium Linear Actuators and our P-series High Force Linear Actuator. Fits on both ends. Handles up to 1000 lbs of force which is more than enough for most applications.

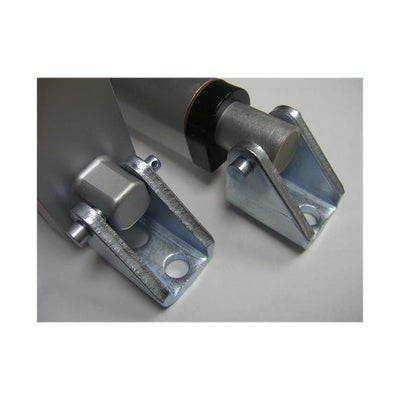

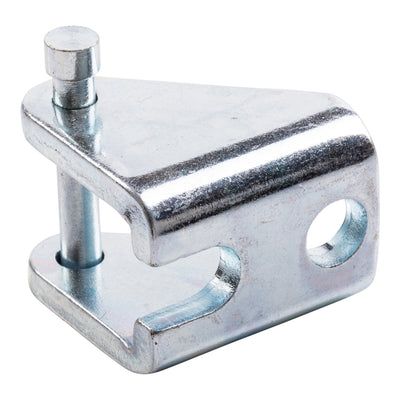

      The MB1-P Mounting Bracket was specifically designed to work in tandem with our  P-series Actuator line. Featuring a clevis design with a pin for quick release, as well as an elongated mounting hole for easy adjustment. The chrome plated steel MB1-P mounting bracket is ready to be fitted for quick installation of a Firgelli Automations  P-series actuator. To keep the clevis pin in place, a cotter pin is included however an R-Clip may also be used for regular quick release functionality. As with all clevis type brackets offered by Firgelli Automations, actuators are able to rotate just over 180 degrees pivoting on the clevis pin, this allows them to be used in a variety of 'hinge' applications as well as opening and closing doors or trunks, rotating solar panels, actuating agricultural equipment, and more.

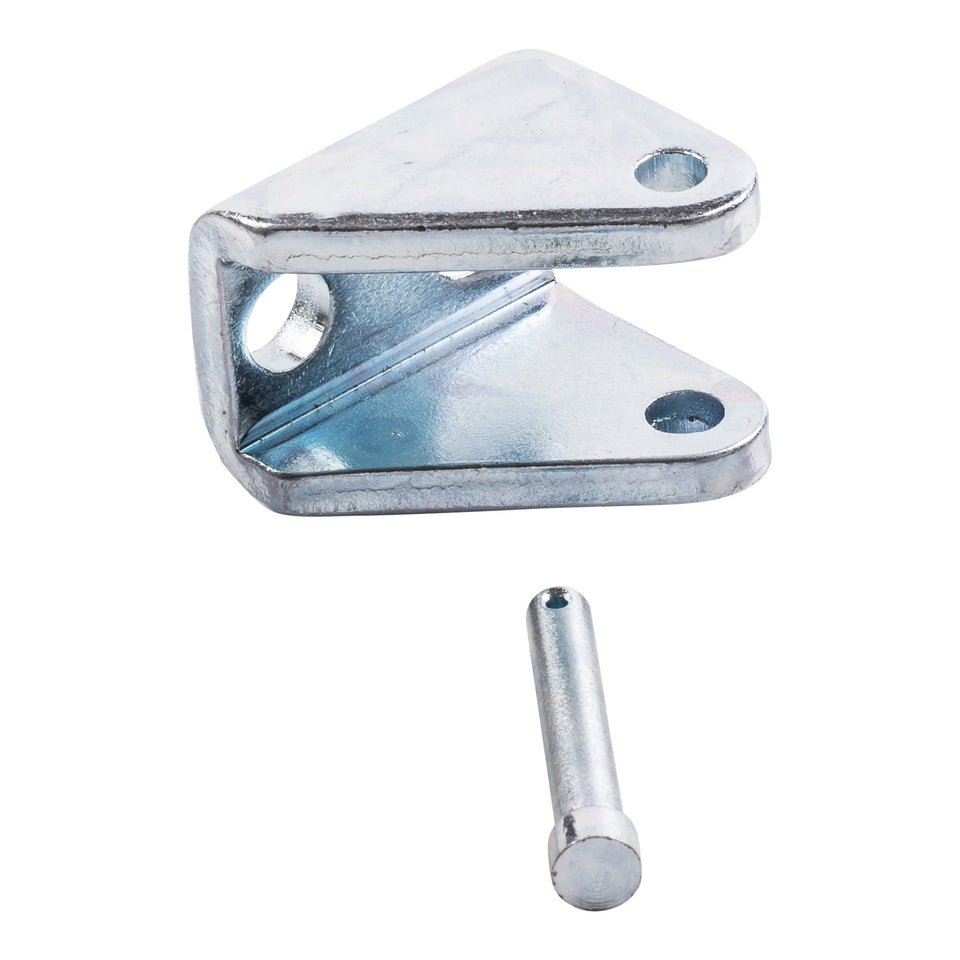

      *Contains 1 bracket and pin.

      Technical Drawings

      MB1-P Technical Drawing

      3D Model Downloads (.STEP)
