Description

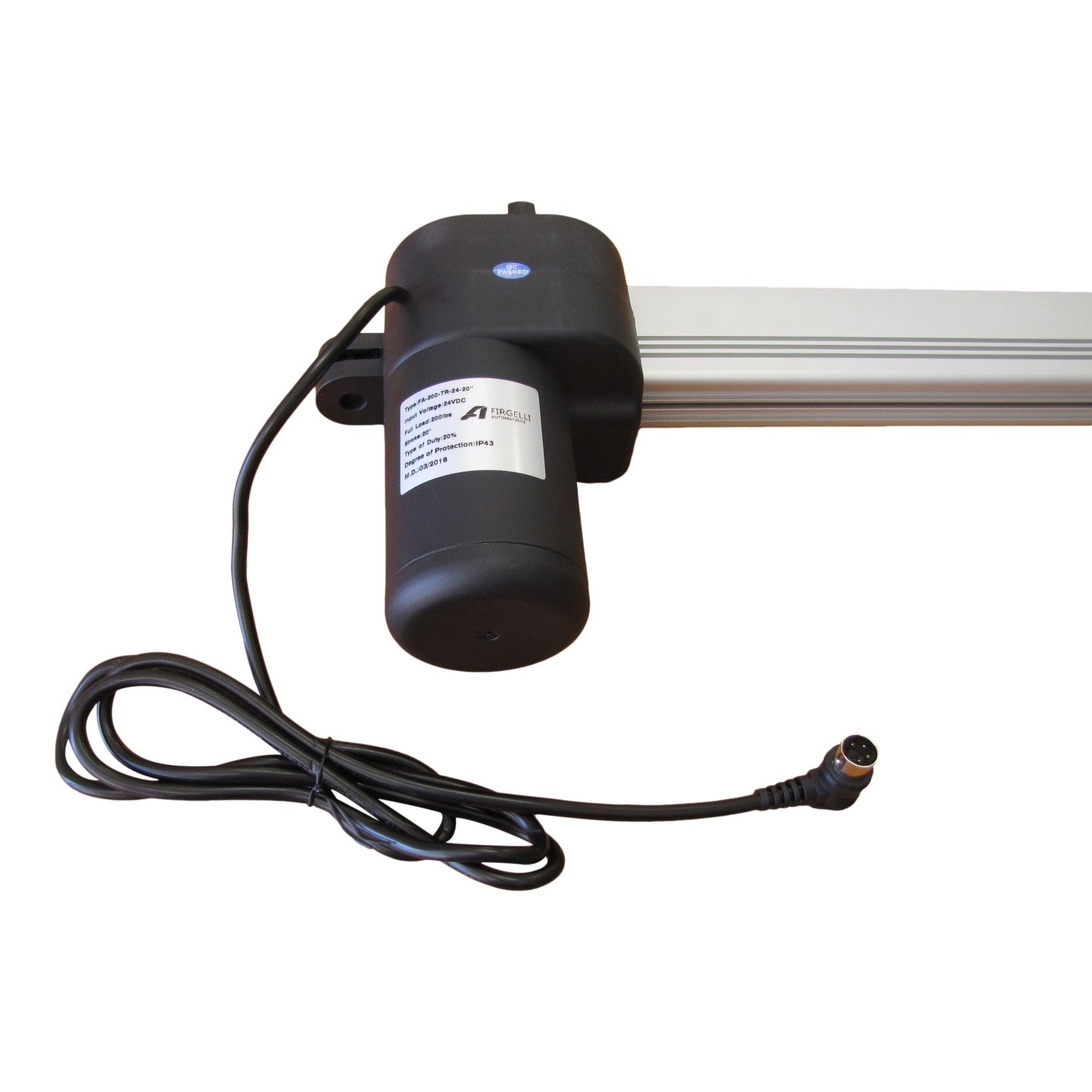

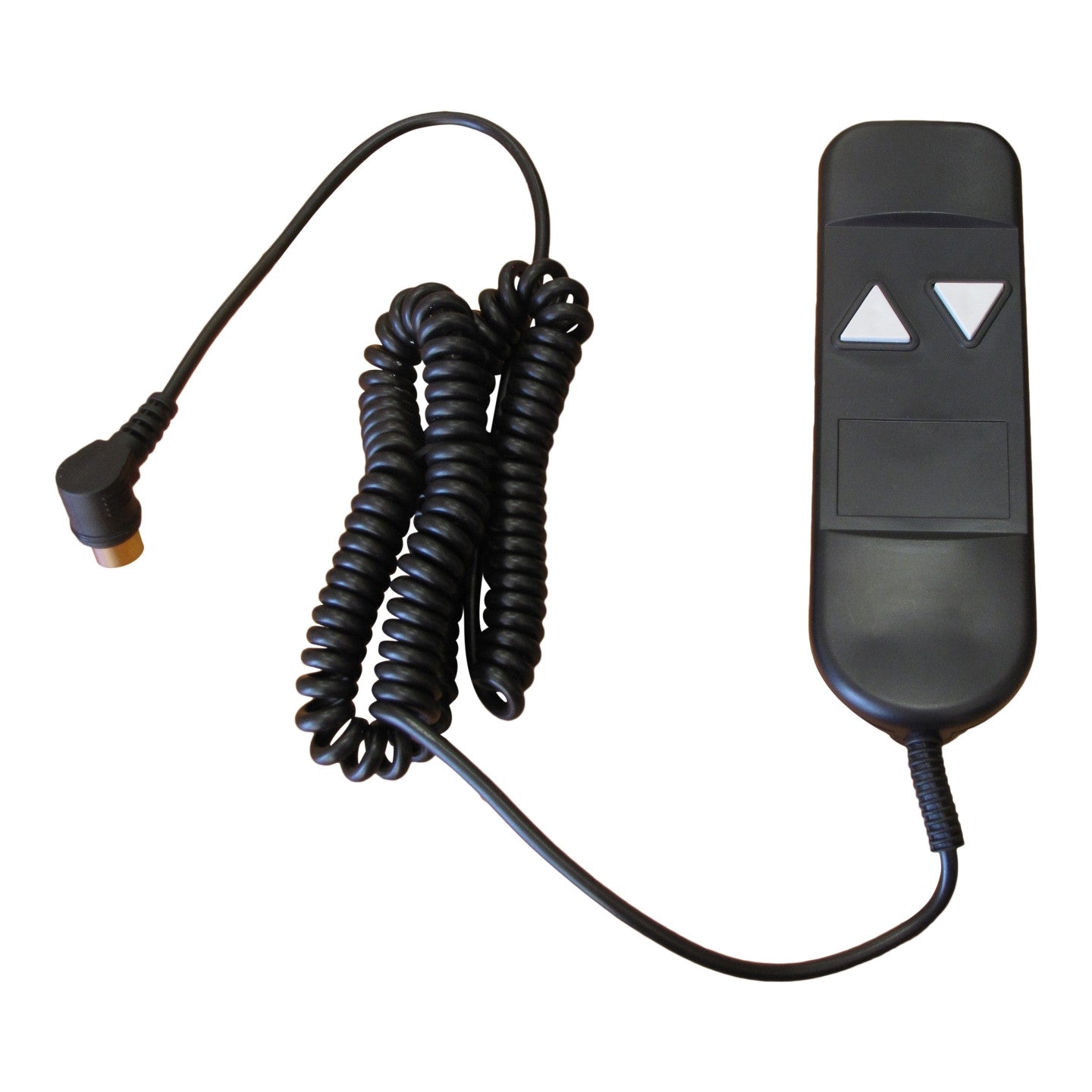

Heavy Duty Track Actuators with many stroke and controller options. These actuators have a sliding carriage that travels across the main body; brackets allow items to be attached to this carriage. All Heavy Duty Track Actuator units come with a power supply, and momentary wired controller for your convenience.

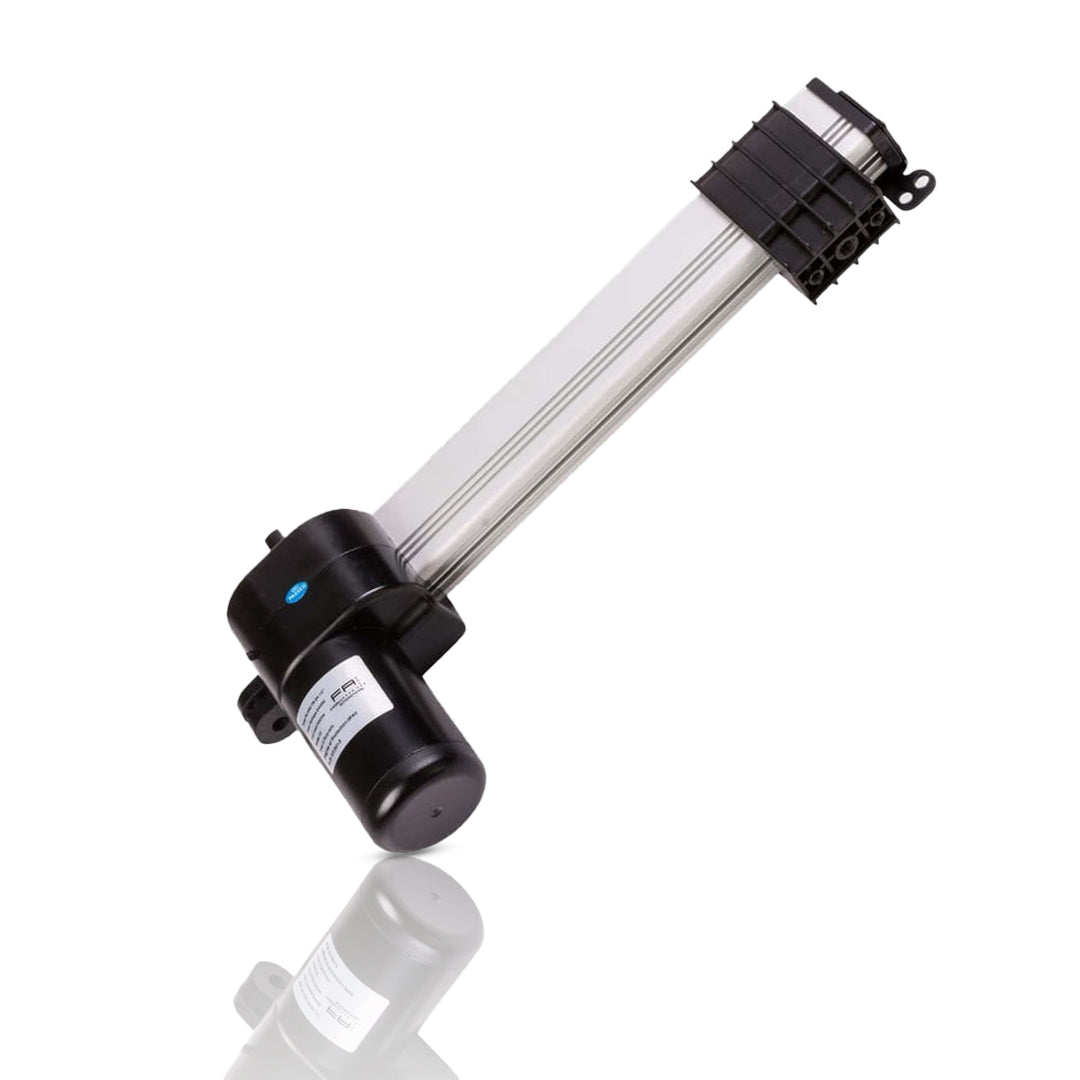

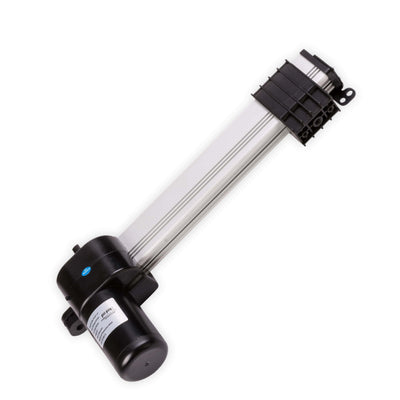

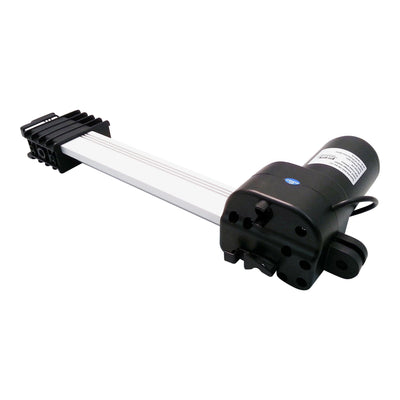

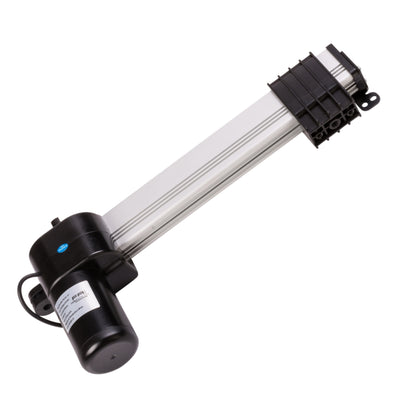

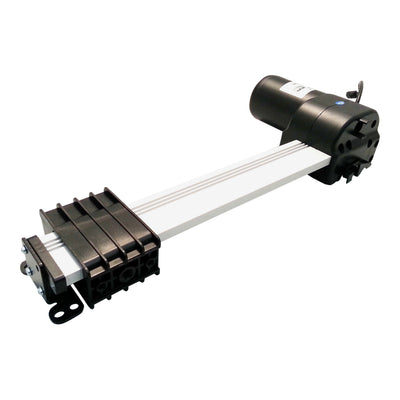

The track actuators offered by Firgelli Automations were developed to fill an essential gap in the linear actuator market. Some applications require an actuator with a very small closed length while maintaining a long stroke; Conventional Rod-style actuators cannot be used in this situation since they require a long casing to house the shaft when retracted. Track Actuators feature a block which slides along the length of the unit, offering application flexibility for vertical or horizontal movement.

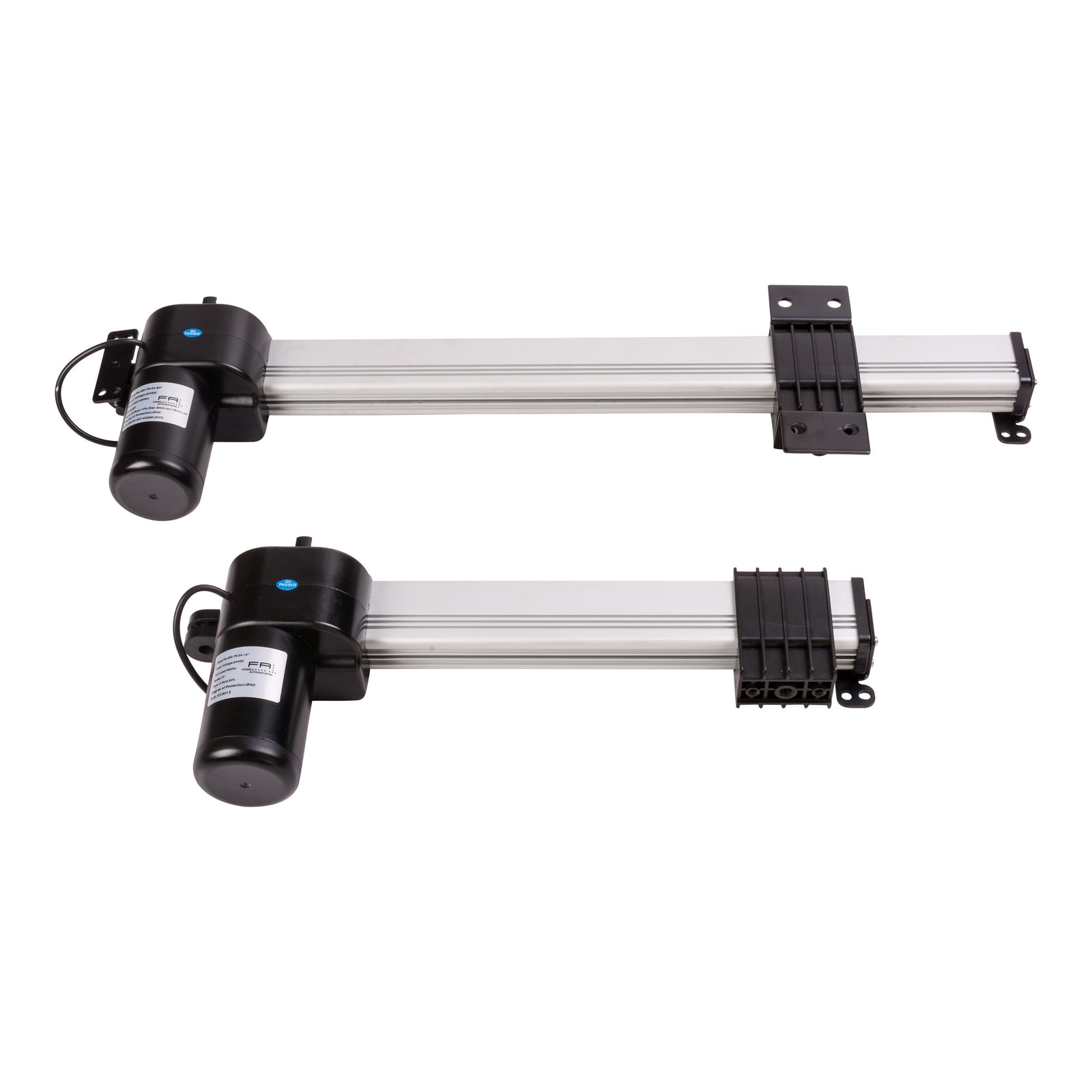

Mounting is possible on three sides of the moving block, and Firgelli Automations offers MB5 Mounting Brackets to assist with attachments. As with all the linear actuators that Firgelli Automations offers, the Heavy-Duty Track Actuator lineup features factory preset internal limit switches, high grade materials providing first rate build quality, smooth and quiet operation at just 5db over ambient noise levels, and versatile mounting options on both ends: a clevis mount and a bracket which rotates on 90 degree intervals allow you to mount the actuator as you please.

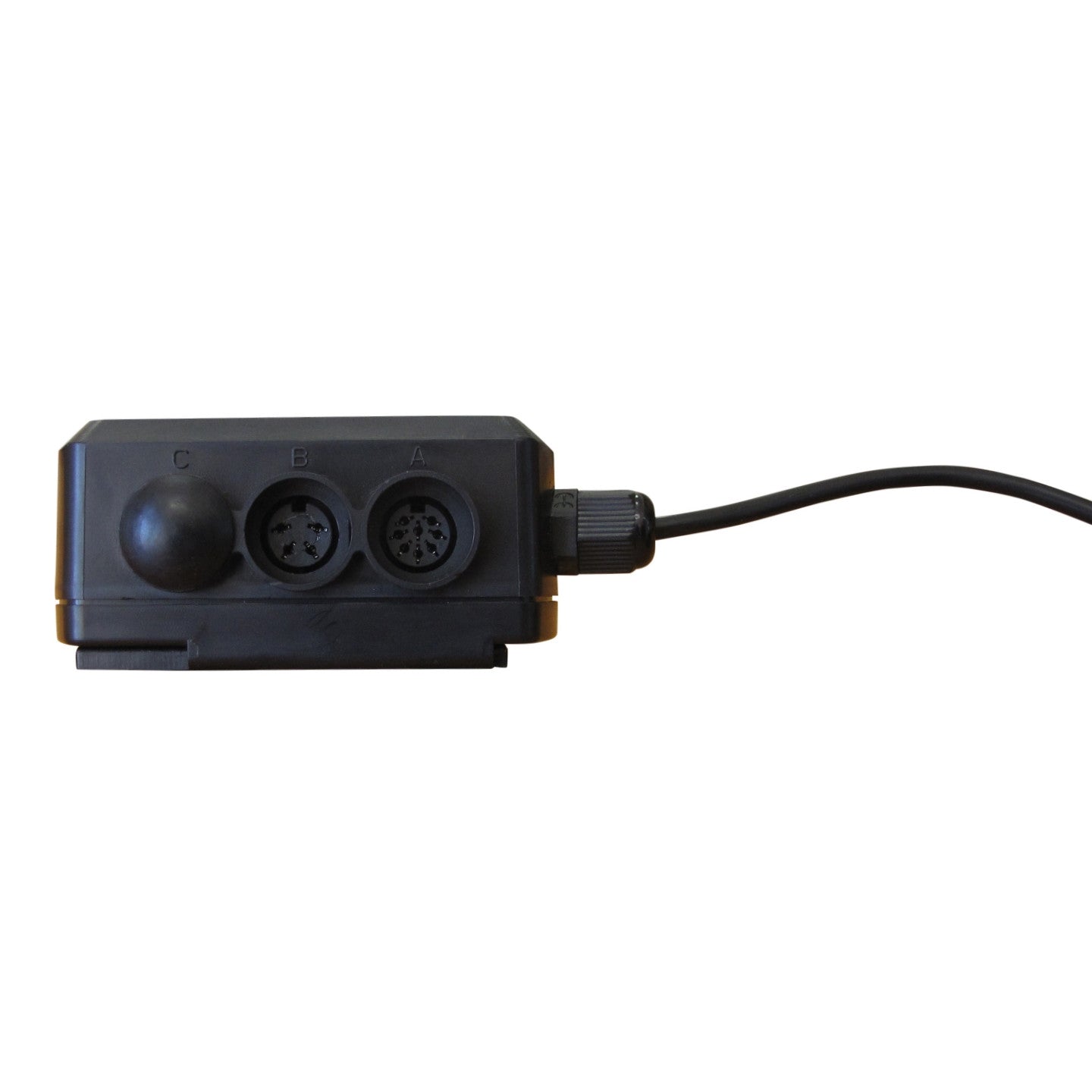

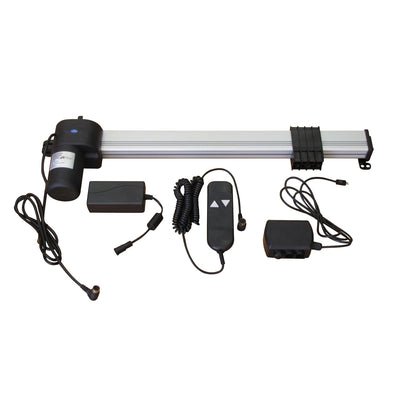

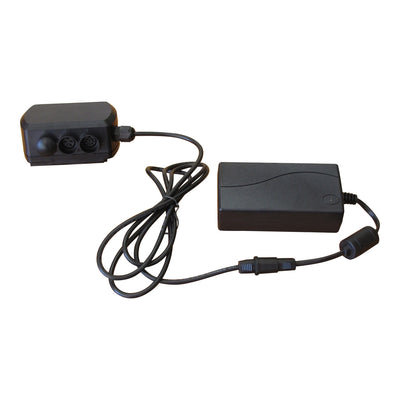

The Heavy-Duty Track Actuator line has two variations, a 200 lb force unit and a 400 lb force unit. Both come as plug & play systems with a wired remote, a power adapter, a control box, and the actuator itself. The power adapter is compatible with North American wall outlets.
| Model | FA-200-TR-24-XX | FA-450-TR-24-XX |
| Dynamic Force | 200 lb | 400 lb |
| Static Force | 175 lb | 350 lb |
| Speed ("/S) | 0.6 (1.56 no load) | 0.15 (0.4 no load) |
| Duty Cycle | 20% at 100% load, 50% at 25% of load, 2 mins on/10min off | |
| IP Rating | 43 | |
| Input | 24v DC | |
| Feedback | None | |
| Synchronous Capability | None, 5-10% variation in speed | |
| Main Tube | Aluminum Alloy | |
| Current | 3 amps full load | |
| Operational Temperature | -26°C/65°C (-15°F/150°) | |
| Limit Switch | Built-in (factory preset) | |
| Safety Certifications | CE | |
| Carriage Holes | Two center holes are M10*1.5. Four smaller holes are M6*1.0 | |
| Bracket(s) | MB5 | |
| Stroke | Hole to Hole | Weight |
| 10" | 18.5" | 10.4 lbs |
| 20" | 28.5" | 12 lbs |
| 30" | 38.5" | 14 lbs |
| 40" | 48.5" | 16.8 lbs |
| 50" | 58.5" | 19 lbs |
| 60" | 68.5" | 21.4 lbs |
Looking for a 3D model of this actuator? Visit the Resources Page under 3D Files Tab.
