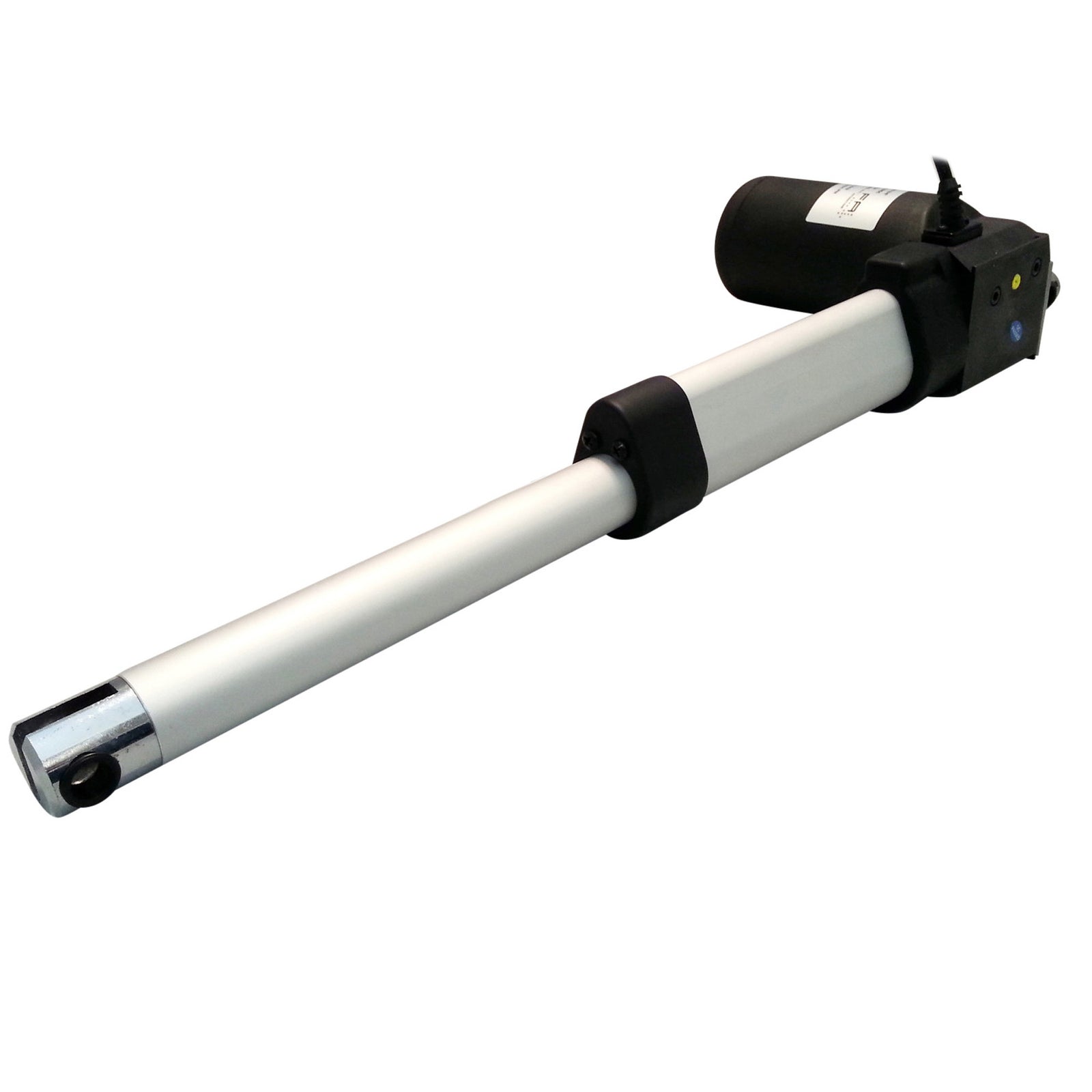

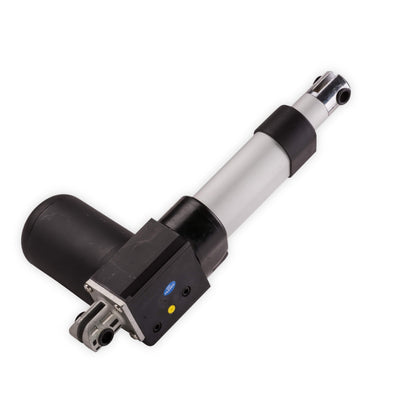

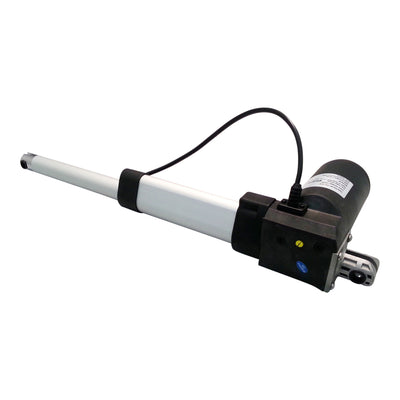

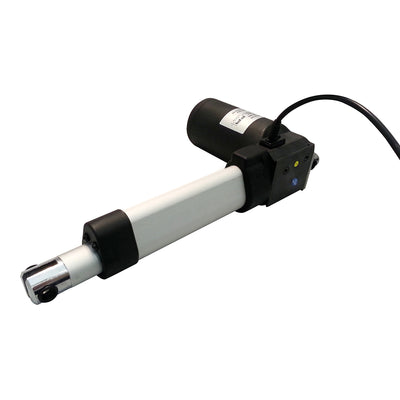

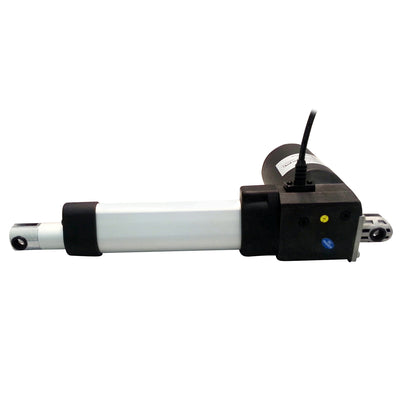

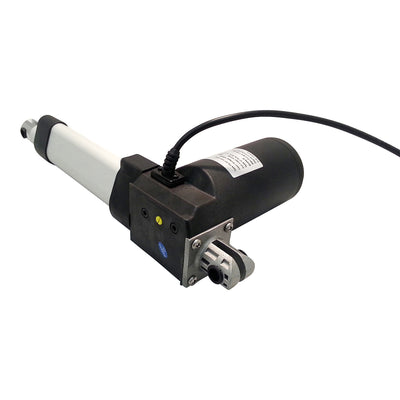

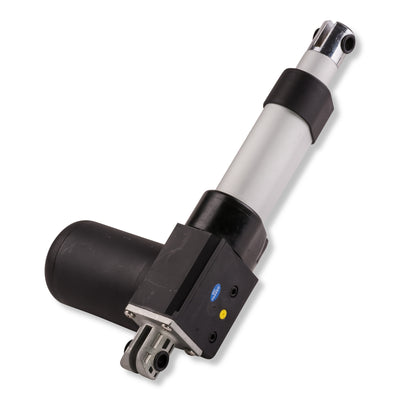

Heavy Duty Rod Actuator - IP66 Rated
Heavy Duty Rod Actuator - IP66 Rated
Spec Sheet
Description
The staple diet of any automated application project is our Heavy duty line-up of actuators. Offering 200 lbs of force at 0.75" per second speed, shipped with built in limit switches, manufactured with high grade aluminum, and coming in various stroke lengths, this is the beginning of most home automation and product automation enterprises.
A high IP rating makes this actuator dust and water resistant which is great for outdoor applications.
Keeping with our promise of peace of mind and ease of use, we carry heavy-duty, clevis-type brackets which fit via quick release pin on either side of the units; alternatively we also offer brackets which will attach to the body of the actuator, giving you more flexibility in the placement of the unit while reducing the amount of custom fabrication that you may require to have all your components of an assembly work in cohesion. MB3 Brackets are used with these models.
All of our units are CE and ROHS certified, and come with a 12 month mechanical warranty to keep your units serving you best. Our company values revolve around providing quick and friendly customer service that will follow your experience with our products and staff.
*Be aware that due to the drive gearing method, this actuator will back drive under higher loads with no power applied to the actuator. Using a gas spring of the correct rating will alleviate the back drive.
Specifications
| Model | FA-200-IP66-12-XX |
| Dynamic Force | 200 lb |
| Static Force | 300 lb |
| Speed ("/S) @ Full Load | 0.75" |
| Duty Cycle | 20% at 100% load, 50% at 25% of load , absolute max. 5 mins continuous use |
| IP Rating | 66 |
| Input | 12V DC |
| Max Draw | 5 A |
| Operational Temperature | -26°C/65°C (-15°F/150°F) |
| Limit Switch | Built-in (factory preset) |
| Safety Certification | CE |
| Bracket(s) | MB3 or MB3U |
| Stroke | Retracted Length | Extended Length | Weight |
| 5" | 12.88 | 17.88 | 5.25 lbs |
| 10" | 17.88" | 27.88" | 5.7 lbs |
| 20" | 27.88" | 47.88" | 7.7 lbs |
| 30" | 37.88" | 67.88" | 9.10 lbs |
| 40" | 47.88" | 87.88" | 9.8 lbs |
| 50" | 57.88" | 108.88" | 10.6 lbs |
| 60" | 67.88" | 127.88" | 18.20 lbs |
Technical Drawings
