Heavy Duty Rod Actuators

Heavy Duty Rod Actuators

Firgelli Automations



 Click here to view the dimensions for the Heavy Duty Rod Actuator.

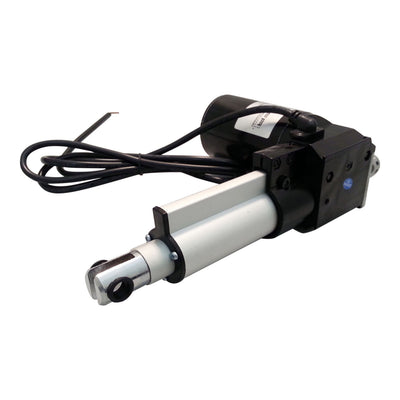

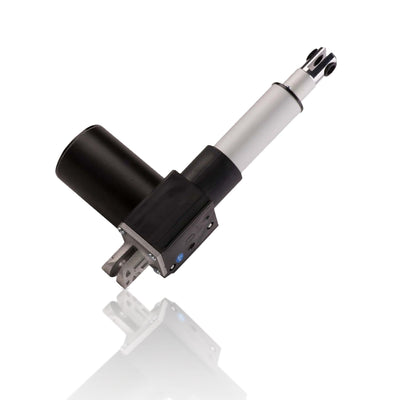

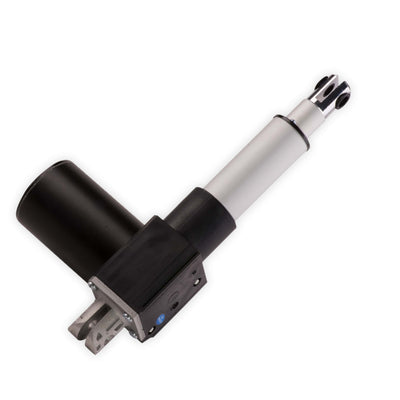

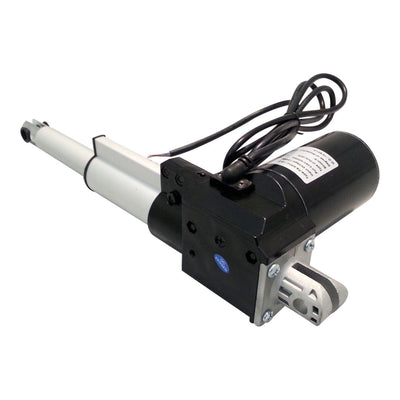

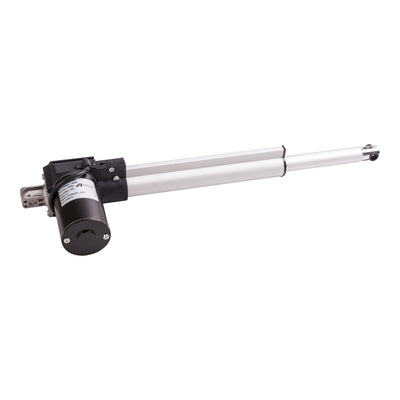

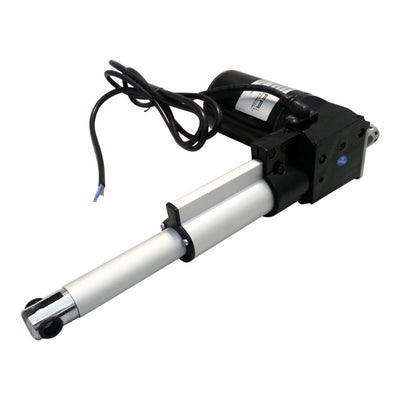

The Heavy Duty line was developed with high standards in mind. Our clients demand the best quality and performance for their money, inspiring us to come up with such a rugged design. This versatile unit features an aluminum shaft to shed weight, internal limit switches, an aluminum alloy inner tube, as well as a high performance 12 volt DC motor which is capable of producing between 200 and 1000 lbs. (90-453 kg) of force.

No matter your application, installation doesn’t need to be a hassle. Required components consist of just two brackets, one for either side, with quick release pins for easy fitment and set-up. Controlling the unit is just as easy via a 2-wire system, making this unit a ‘plug and play’ type accession unique to Firgelli Automations.

 All of our units are CE and ROHS certified, and come with a 12 month mechanical warranty to keep your units serving you best. Our company values revolve around providing quick and friendly customer service that will follow your experience with our products and staff.

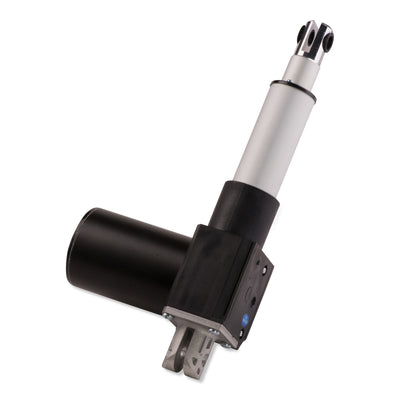

Model FA-200-L-12-XX FA-400-L-12-XX FA-1000-L-12-XX
Dynamic Force 200 lb 400 lb 1000 lb
Static Force 350 lb 600 lb  1350 lb
Speed ("/S) @ Full Load 0.8" 0.4" 0.2"
Duty Cycle 20% at 100% load, 50% at 25% of load ,5mins max. continous use
IP Rating 43
Input 12v DC
Max Draw 5 A
Operational Temperature -26°C/65°C (-15°F/150°F)
Limit Switch Built-in (factory preset)
Safety Certification CE

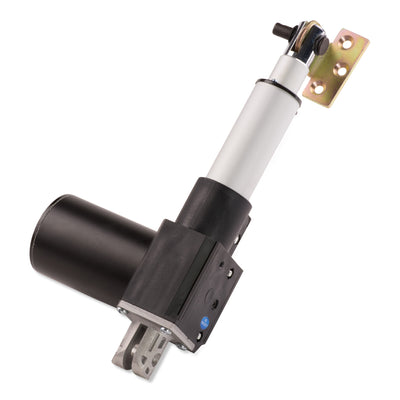

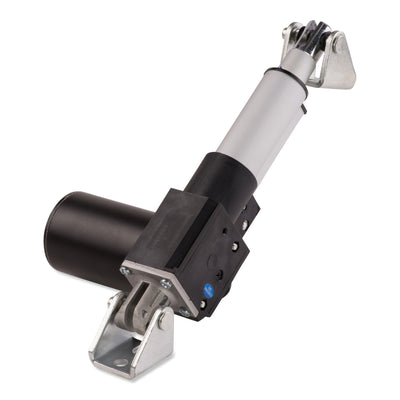

Bracket(s) MB3 or MB3U

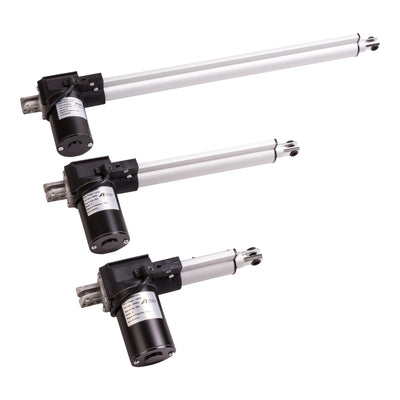

Stroke Retracted Length Extended Length Weight
3" 9.88" 12.88" 4.5 lbs
6" 12.88" 18.88" 5.1 lbs
8" 14.88" 22.88" 5.3 lbs
9" 15.88" 24.88" 5.5 lbs
12" 18.88" 30.88" 5.9 lbs
15" 21.88" 36.88" 6.1 lbs
18" 24.88" 42.88" 6.7 lbs
24" 30.88" 54.88" 7.4 lbs
30" 36.88" 66.88" 8.2 lbs


Heavy Duty Actuator Technical Drawing
