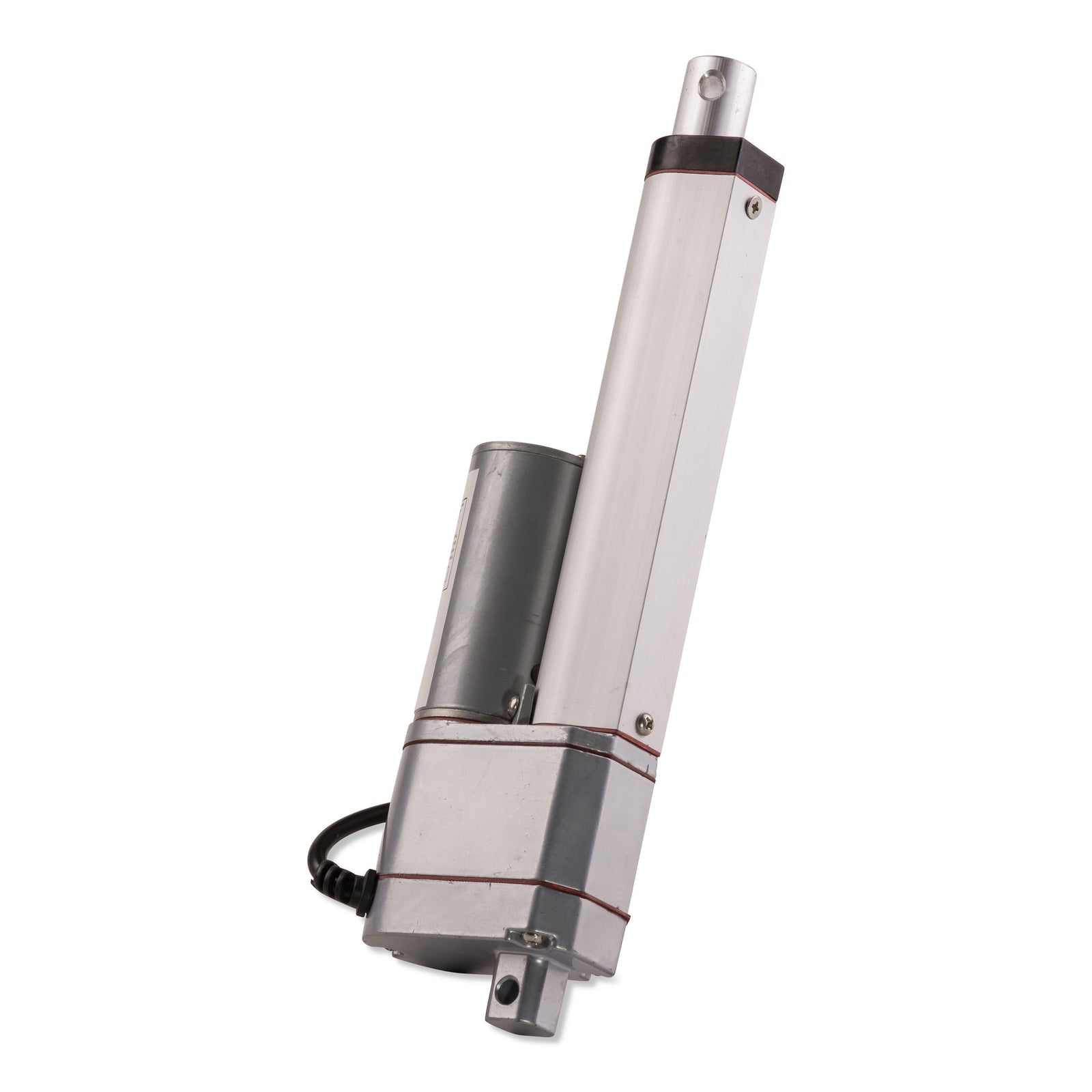

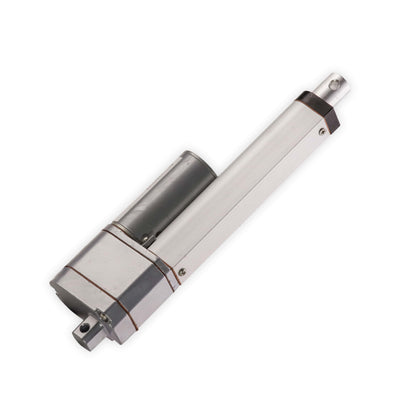

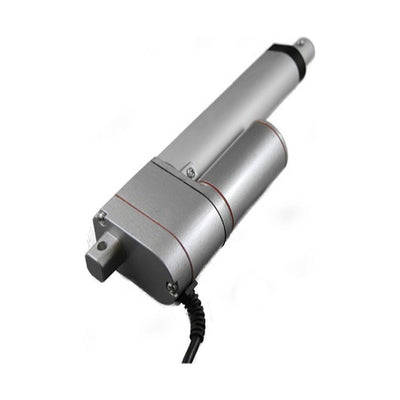

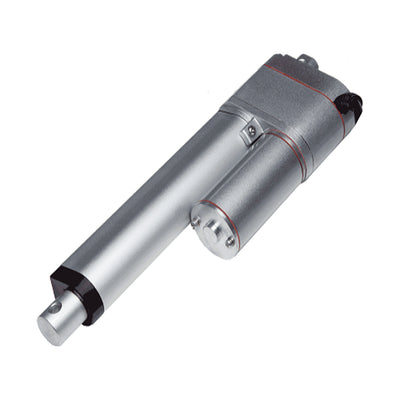

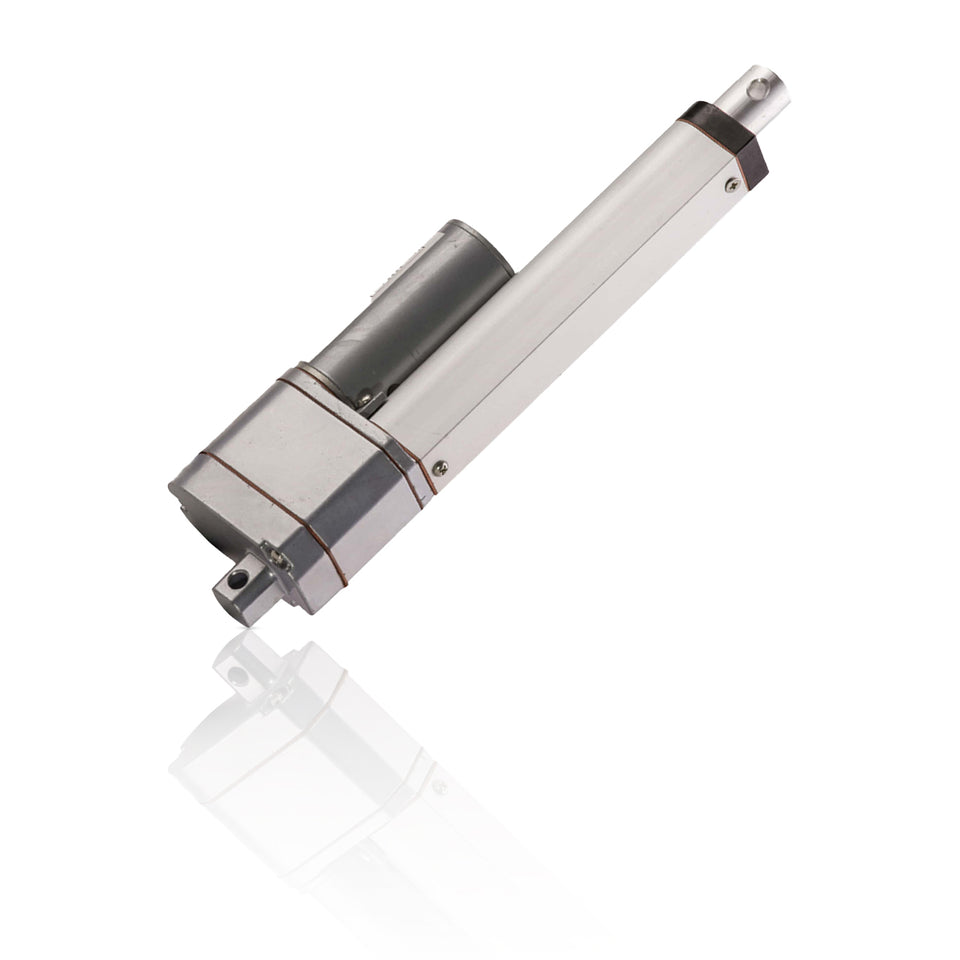

Feedback Rod Linear Actuator
Feedback Rod Linear Actuator
Feedback actuator control using Arduino
Spec Sheet
Description
These Actuators have built-in potentiometers inside them so you can determine the position of the actuators at any point in time. The potentiometers are a Bournes 10 turn potentiometer with 10K Ohm resistance
A good way to connect the Feedback actuators to a feedback reading device we recommend using an Arduino board.
Using the Arduino board you would be able to define pre-set positional limits for your actuator which can be ideal for certain applications.
For all applications requiring feedback, our Bournes potentiometer-equipped linear actuator line is your solution. Offering two variations in the line-up, the 35 lb dynamic force or 150 lb dynamic force linear actuator, your intelligent system for your project just got a lot more versatile. This line is constructed of high-grade materials: an aluminum inner and outer tube paired with a zinc alloy housing, resulting in enhanced corrosion resistance for long service life. As with all of our linear actuators, these variations both come equipped with factory built-in limit switches as well as a clevis mounting point on each end to ensure easy fitment. The potentiometer feedback runs on a 10K ohm 3-wire system, and the linear actuator is controlled by a two-wire system where reversing the polarity will retract the actuator; this system is easily wired to circuit boards for intelligent control, as well as relays, switches, and more.
The Feedback Rod Actuator Line uses the MB1 Mounting Brackets and/or MB6 and MB10 Rod End Bracket
Specifications
| Model | FA-PO-35-12-XX | FA-PO-150-12-XX |
FA-PO-240-12-XX |
| Dynamic Force | 35 lb | 150 lb | 200 lb |
| Static Force | 70 lb | 300 lb | 400 lb |
| Speed ("/S) | 2" | 0.5" | 0.3" |
| Gear Ratio | 5:1 | 20:1 | 30:1 |
| Duty Cycle | 20% at 100% load, 50% at 25% of load, Max 5mins continuous use | ||
| IP Rating | 54 | ||
| Screw | Acme Screw | ||
| Thread Diameter | 12mm | ||
| Clevis Ends | 6.3mm diameter | ||
| Input | 12v DC | ||
| Max Draw | 5 A | ||
| Operational Temperature | 0°C - 40°C | ||
| Limit Switch | Built-in (factory preset) | ||
| Safety Certifications | CE, ROHS | ||
| Bracket(s) | MB1 and/or MB6 and MB10 Rod End Bracket | ||
| Feedback |
10K ohm 3-wire potentiometer Linearity +/- 0.25% 10 Turn Potentiometer Power rating 1-1.5W |
||
| Stroke | Retracted Length | Extended Length | Weight |
| 2" | 7.9" | 9.9" | 2.7 lbs |
| 4" | 9.9" | 13.9" | 2.9 lbs |
| 6" | 11.9" | 17.9" | 3.1 lbs |
| 8" | 13.9" | 21.9" | 3.4 lbs |
| 12" | 17.9" | 29.9" | 3.85 lbs |
Technical Drawing
Control Board Wiring
All feedback actuators are compatible with the Actuonix Linear Actuator Control board, also known as the LAC board. More information can be found by following this link. as well as an Arduino board.
