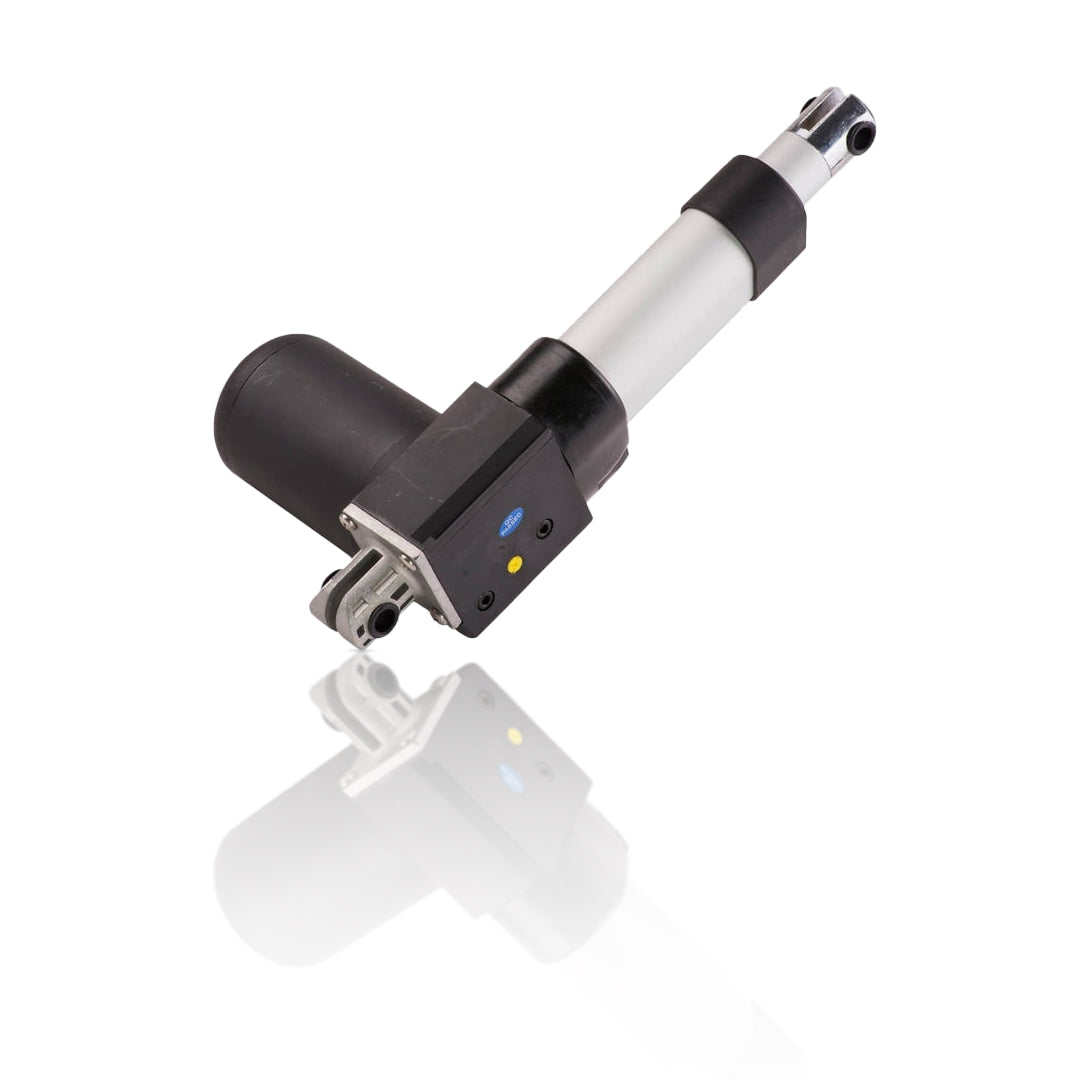

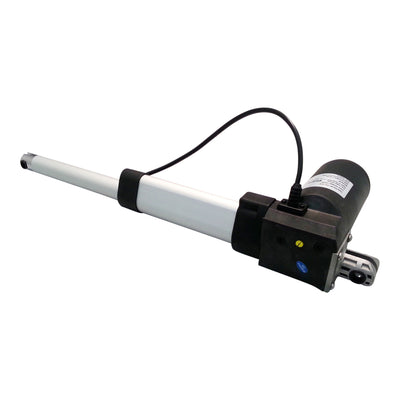

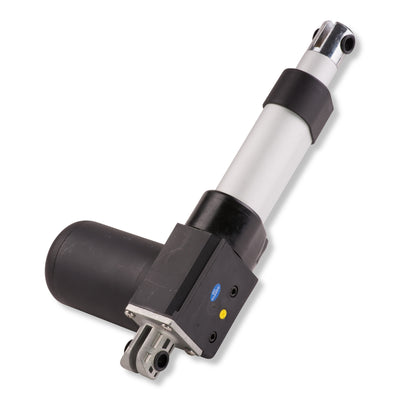

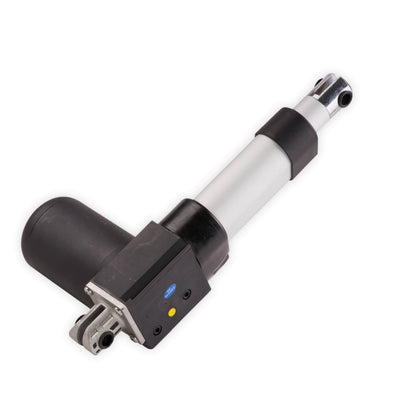

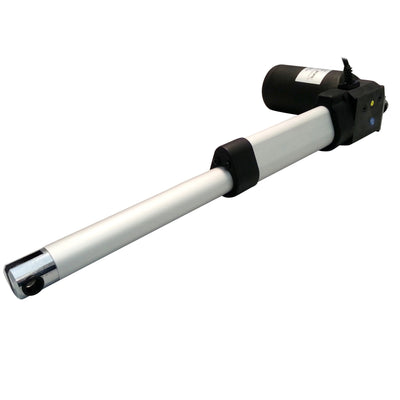

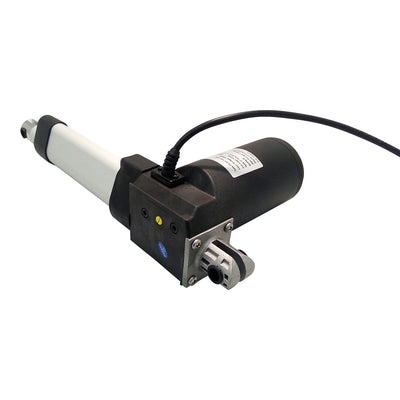

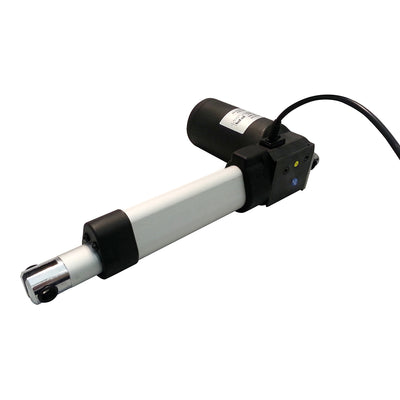

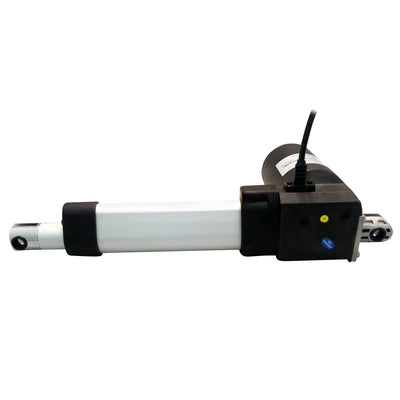

      Our Deluxe Linear Actuators are named this because they are very quiet, have a worm gear drive mechanism which reduces friction thus offering better duty cycle and life span, and are great for home automation projects where noise is an issue. These Actuators are fast too, at 3" per second with 100lbs force.

      Be aware that due to the drive gearing method, this actuator will back drive under higher loads with no power applied to the actuator. using a gas spring of the correct rating will alleviate the back drive.Another possibility is to use an SPDT relay to work as a back-emf brake.

      The Deluxe line of Rod Actuators were developed with demanding motion applications in mind. The Deluxe line of linear actuators come in one variation, capable of pushing and pulling up to 100 lbs of force, while still moving at up to 3 inches per second at no load. Designed with quiet and smooth operation in mind, the Deluxe Linear Actuator line features a worm drive system incorporated into the casing along with factory built-in limit-switches, high-grade materials, and clevis mounting points on each end of the actuator for flexibility. This variation of linear actuator has an IP66 rating which makes it dust-tight and resistant to powerful water jets from all directions, without immersion.

      Use either MB3 brackets or MB3U brackets for heavier duty applications.

      Model FA-HF-100-12-XX
      Dynamic Force 100 lb
      Static Force 180 lb
      Speed ("/S) 3"
      Duty Cycle 20% at 100% load, 50% at 25% of load, 5 mins max. continous use
      IP Rating 66
      Input 12v DC
      Operational Temperature -26°C/65°C (-15°F/150°)
      Limit Switch Built-in (factory preset)
      Safety Certifications CE, ROHS
      Bracket(s) MB3 or MB3U Brackets
      Draw at Full Load 10 Amps


      Stroke Retracted Length Extended Length Weight
      3" 10.88" 13.88" 5.0 lbs
      6" 13.88" 19.88" 5.5 lbs
      9" 16.88" 25.88" 5.9 lbs
      12" 19.88" 31.88" 6.3 lbs
      15" 22.88" 37.88" 6.5 lbs
      18" 25.88" 43.88" 7.25 lbs
      24" 31.88" 55.88" 8.1 lbs
      30" 37.88" 67.88" 9.0 lbs
      32" 39.88" 71.88" 9.3 lbs
      36"  43.88" 79.88" 9.9 lbs

      Use MB3 or MB3U brackets for these actuators.
