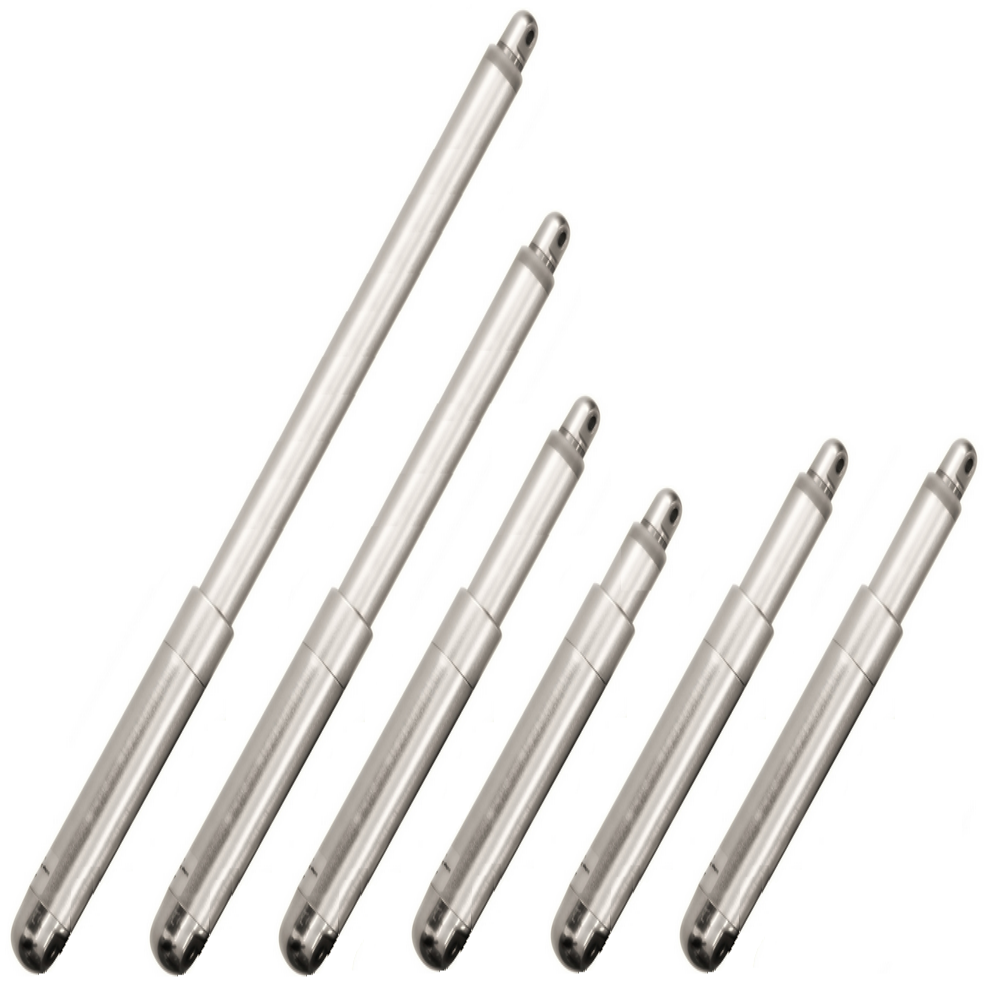

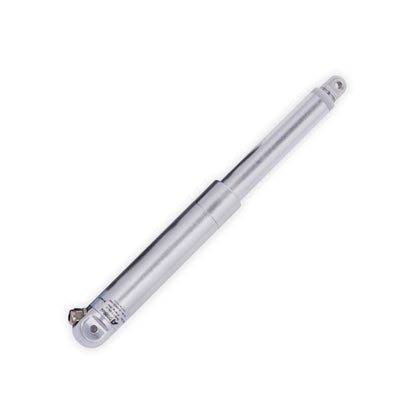

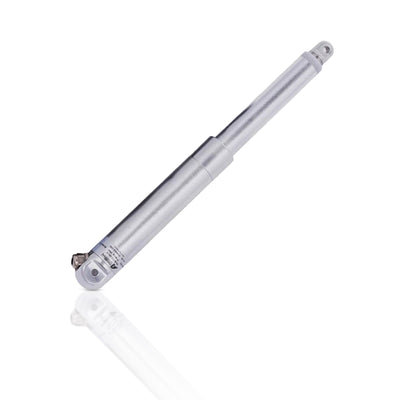

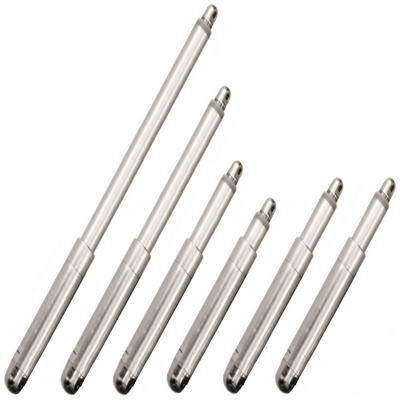

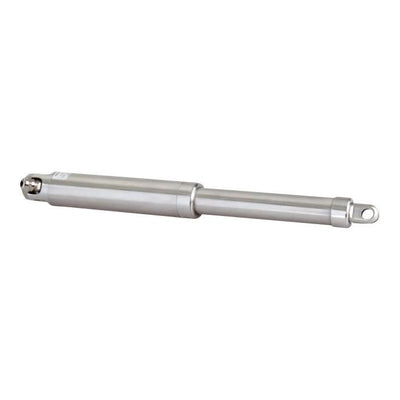

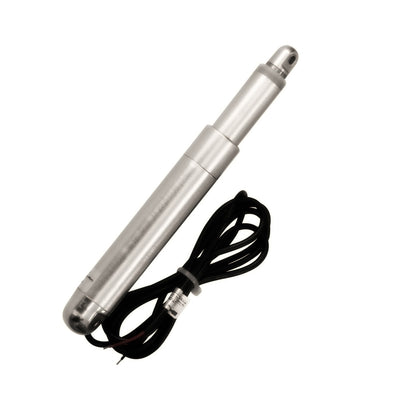

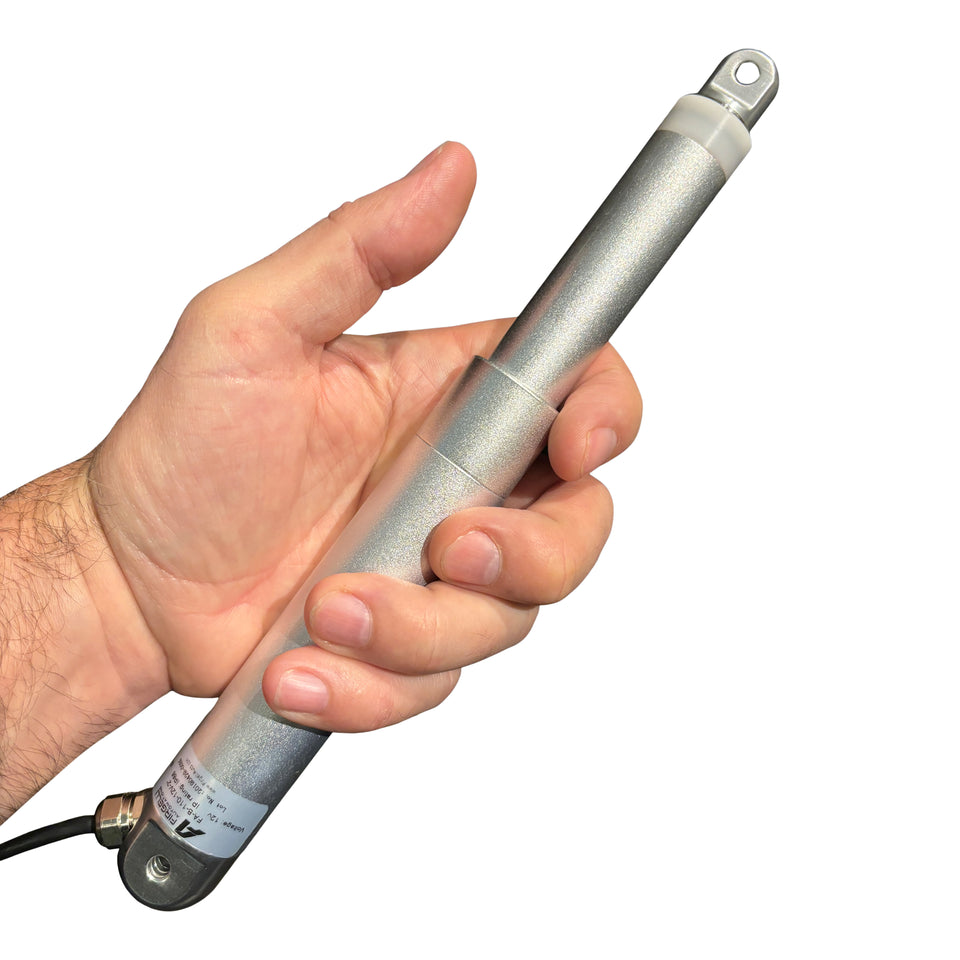

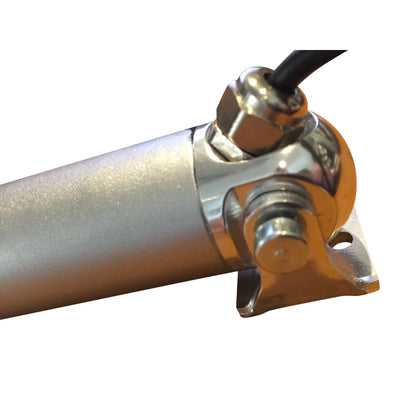

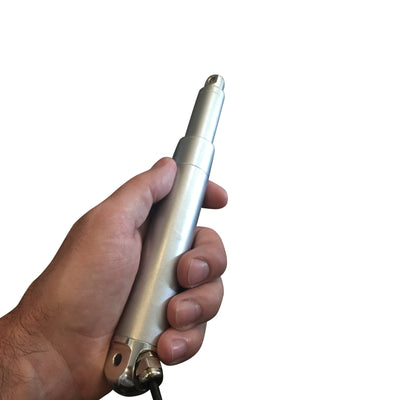

The new Bullet Series Mini Actuator is very compact and powerful for its size.  Made from T6061 Aluminum, they are light weight and fitted with high quality Japanese motors to ensure a long life span and low operating noise, plus an IP66 rating. We offer them as standard in 12v or 24v, with two force options and stroke lengths from 1 to 8 inches. Pairs with MB14 brackets, which are designed specifically for this actuator.

These Actuators come with an integrated force sensor (in the form of an over-current protection circuit), this means if they bump into something, or when they get to the end of their stroke, they automatically stop moving until you either change direction or remove the load. Please be aware that this model does not have internal limit switches. This is a great new safety mechanism and offers many applications from Skylight Window openers to Automotive motion control, perfect for applications where space is tight.

CAD models of this actuator can be found under Resources/3D Files. For further information review the specifications and technical drawings down below or visit our tutorials page for instructions on how to use this actuator with switches, remotes, speed controllers, and Arduino.

Accessories sold separately include: Remote Controls - Switches - Micro-Controllers - Power Supplies

FA-B-20-12V FA-B-20-24V FA-B-110-12V FA-B-110-24V
Push/Pull Force 20 lb 110 lb
Self Locking Force 30-60 lb 165-330 lb
Speed ("/s) 0.433 0.138
Gear Ratio 49 139
Voltage 12V 24V 12V 24V
Max Current 1.4A 0.7A 1.4A 0.7A
Duty Cycle 10% 1 min on and 10 min rest at full load
Operating Temp. Range 41°F to 104°F (5°C to 40°C)
Over Current Circuit Protection Built In
Circuit Breaking Current 1A 0.5A 1A 0.5A
Circuit Breaking Response Time 0.1 to 0.5 Seconds
Feedback None
Synchronous Capability None, 5-10% variation in speed
Storage Temp. Range -40°F to 158°F (-40°C to +70°C)
IP Rating 66
No Load Noise Level 50-70 dB
Diameter 1.024”
Outer Housing Material Aluminum T6061
Expansion Rod Material Stainless Steel 304
Cable Length 4 feet
Wire Size 20AWG
Brackets MB14
Stroke Length Retracted Length Extended Length Weight
1” 7.693” 8.693” 0.715 lb
2” 8.693” 10.693” 0.77 lb
3” 9.693” 12.693” 0.825 lb
4” 10.693” 14.693” 0.88 lb
5” 11.693” 16.693” 0.935 lb
6” 12.693” 18.693” 0.99 lb
7” 13.693” 20.693” 1.045
8” 14.693” 22.693” 1.10 lb
Bullet Series Technical Drawing
12v Current vs Load
Speed vs Load
24v Current vs Load

Accuracy varies by 10%, applications in the dashed range are not recommended
