Bullet Series 50 Cal. Linear Actuators

Bullet Series 50 Cal. Linear Actuators

CAD
Model #
Voltage
Force
Stroke
Quantity
Bulk Discount

Save on your order when purchasing our Actuators in large volumes. Discount will be calculated at checkout.

Min. Quantity Discount
11 20 % OFF
31 25 % OFF
50 30 % OFF
200 40 % OFF
qty limit cart limit
      Tech Drawing

      Description

      The Bullet Series 50 Cal. Linear Actuator was developed to have a slim in-line motor design. Includes built-in hall effect sensor, which allows for synchronization, position and speed control. The hall effect feedback is vital to applications where multiple actuators must travel in sync. Popular within robotics, manufacturing, marine, off-road vehicles and home automation.

      We offer them as standard in 12v or 24v, two force options, and in stroke lengths from 6 to 40 inches

      Specifications
      FA-BH50-674-12-(S) FA-BH50-674-24-(S) FA-BH50-1124-12-(S) FA-BH50-1124-24-(S)
      Push/Pull Force 674 lbs. 674 lbs. 1124 lbs. 1124 lbs.
      Static Force 808 lbs. 808 lbs. 1348 lbs 1348 lbs.
      Speed at full load 0.145”/sec 0.145”/sec 0.08”/sec 0.08”/sec
      Gear Ratio 50:1 50:1 100:1 100:1
      Voltage 12V 24V 12V 24V
      Max Current at full load 3.9A 2A 4.7A 2.3A
      Duty Cycle 10% - Max 2 min continuous operation followed by 18 min rest
      Operating Temp. Range -4°F to 149°F (-20°C to 65°C)
      Protection Class IP66
      No Load Noise Level 50-70 dB
      Diameter 1.97" (50mm)
      Outer Housing Material Aluminum 6061
      Expansion Rod Material Stainless Steel 304
      Limit Switch  Built-In non-adjustable

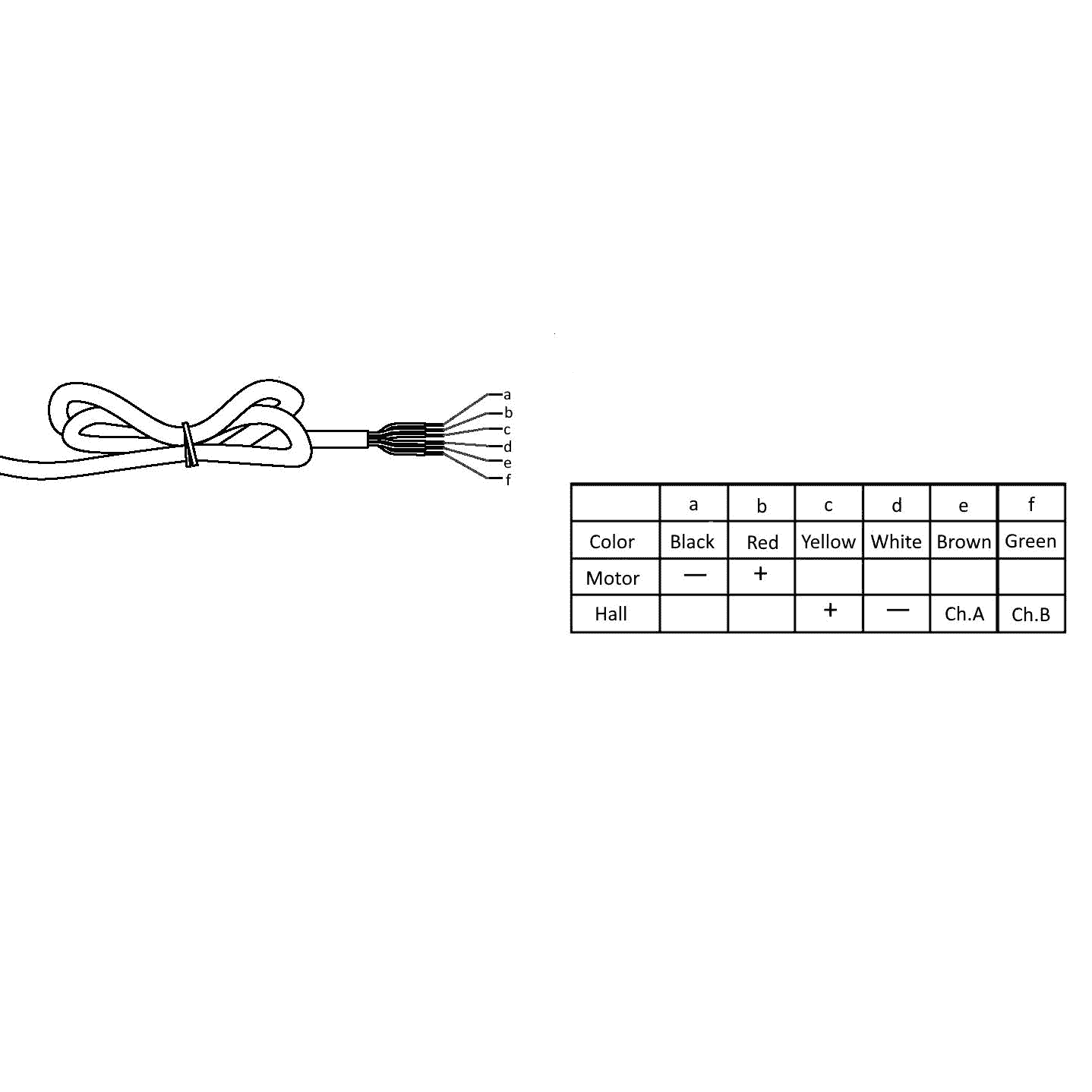

      Feedback Hall Effect Sensor
      Pulses per inch of travel 12000
      Feedback Voltage 5V
      Cable Length 1.5 feet
      Brackets MB50 or MB50C

      Stroke Length Retracted Length Extended Length Weight (lb) STEP File
      6" 18.21" 24.07" 4.85 FA-BH50-(F)-(V)-6
      8" 20.18" 28.01" 5.25 FA-BH50-(F)-(V)-8
      10" 22.14" 31.95" 5.6 FA-BH50-(F)-(V)-10
      12" 24.11" 35.88" 5.95 FA-BH50-(F)-(V)-12
      18" 31.99" 49.66" 7.25 FA-BH50-(F)-(V)-18
      24" 37.89" 61.47" 8.15 FA-BH50-(F)-(V)-24
      30" 45.77" 75.25" 9.45 FA-BH50-(F)-(V)-30
      36" 51.67" 87.07" 11.1 FA-BH50-(F)-(V)-36
      40" 55.61" 94.94" 11.35 FA-BH50-(F)-(V)-40
      Technical Drawings

      Curve Graphs

      Product Video

      Bullet Series 50 cal. Review

      Comparison Video

      Bullet Series 50 cal. vs 36 cal.
