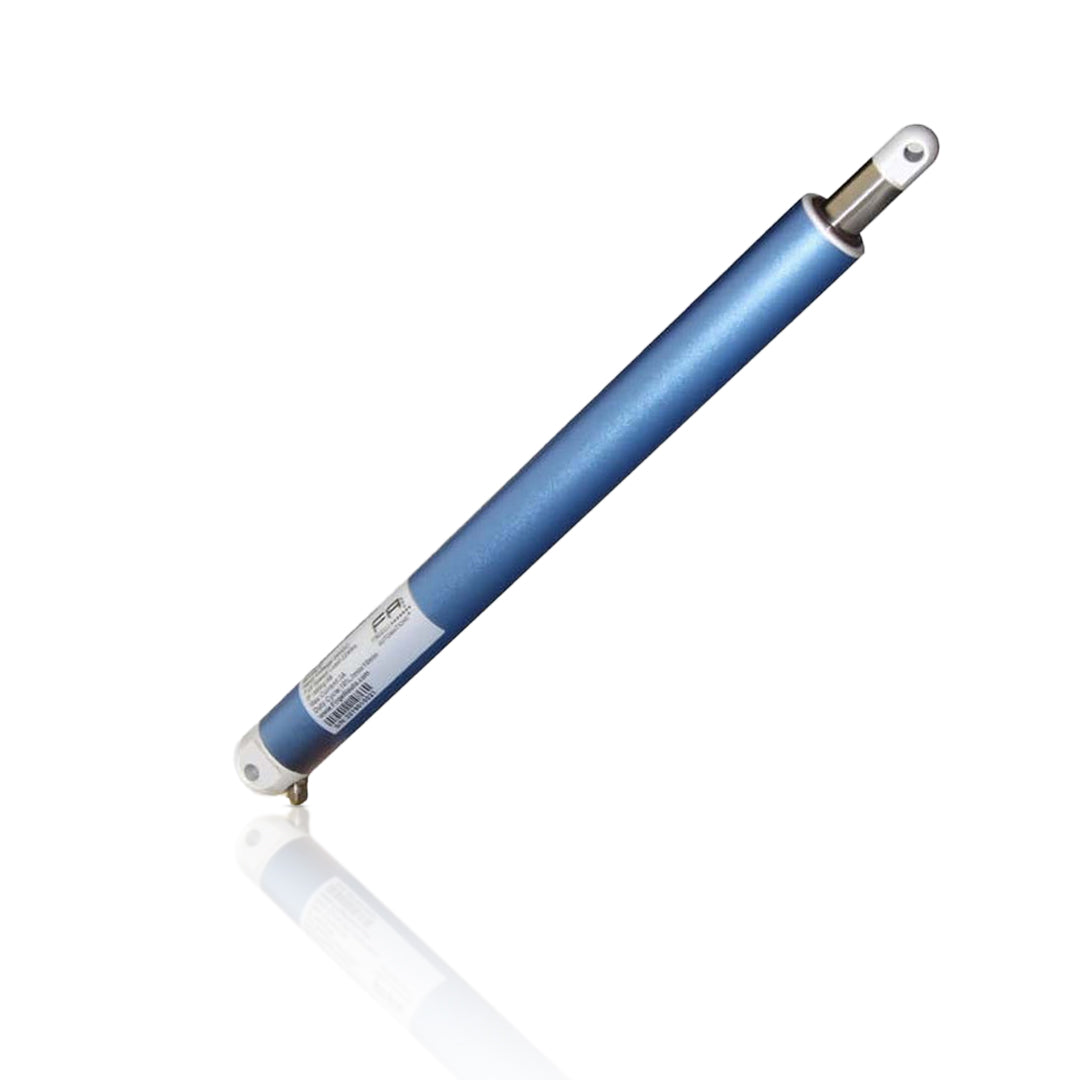

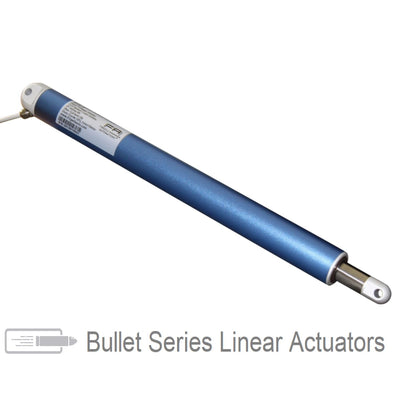

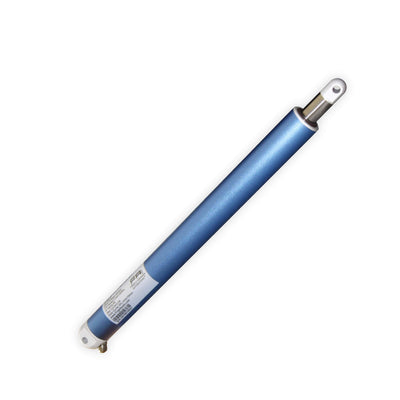

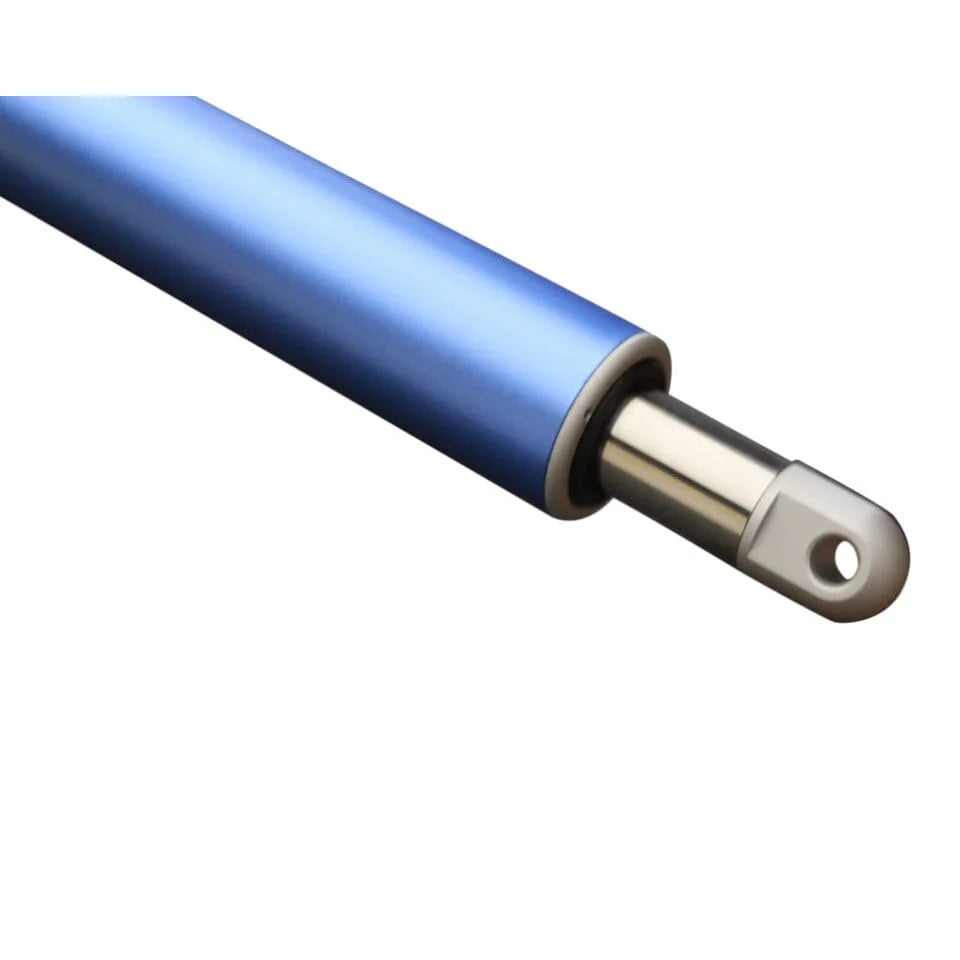

Bullet Series 36 Cal. Linear Actuators

      Bullet Series 36 Cal. Linear Actuators

      CAD
      Model #
      Voltage
      Stroke
      Quantity
      Bulk Discount

      Save on your order when purchasing our Actuators in large volumes. Discount will be calculated at checkout.

      Min. Quantity Discount
      11 20 % OFF
      31 25 % OFF
      50 30 % OFF
      200 40 % OFF
      qty limit cart limit
      Tech Drawing

      Description

      The Bullet Series 36 Cal. Linear Actuator was developed to have a slim in-line motor design.Includes built-in hall effect sensor, which allows for synchronization, position and speed control. The hall effect feedback is vital to applications where multiple actuators must travel in sync.

      Available in 12V and 24V and various stroke lengths from 6 to 24 inches.

      Specifications

      FA-BH36-224-12-(S)

      FA-BH36-224-24-(S)

      Push/Pull Force 224 lbs. 224 lbs.
      Static Force 268 lbs. 268 lbs.
      Speed at full load 0.157”/sec 0.157”/sec
      Gear Ratio 100:1 100:1
      Voltage 12V 24V
      Max Current at full load 1A 0.6A
      Duty Cycle 10% - Max 2 min continuous operation followed by 18 min rest
      Operating Temp. Range -4°F to 149°F (-20°C to 65°C)
      Protection Class IP66
      No Load Noise Level 50-70 dB
      Diameter 1.42" (36mm)
      Outer Housing Material Aluminum
      Expansion Rod Material Stainless Steel 304
      Limit Switch  Built-In non-adjustable

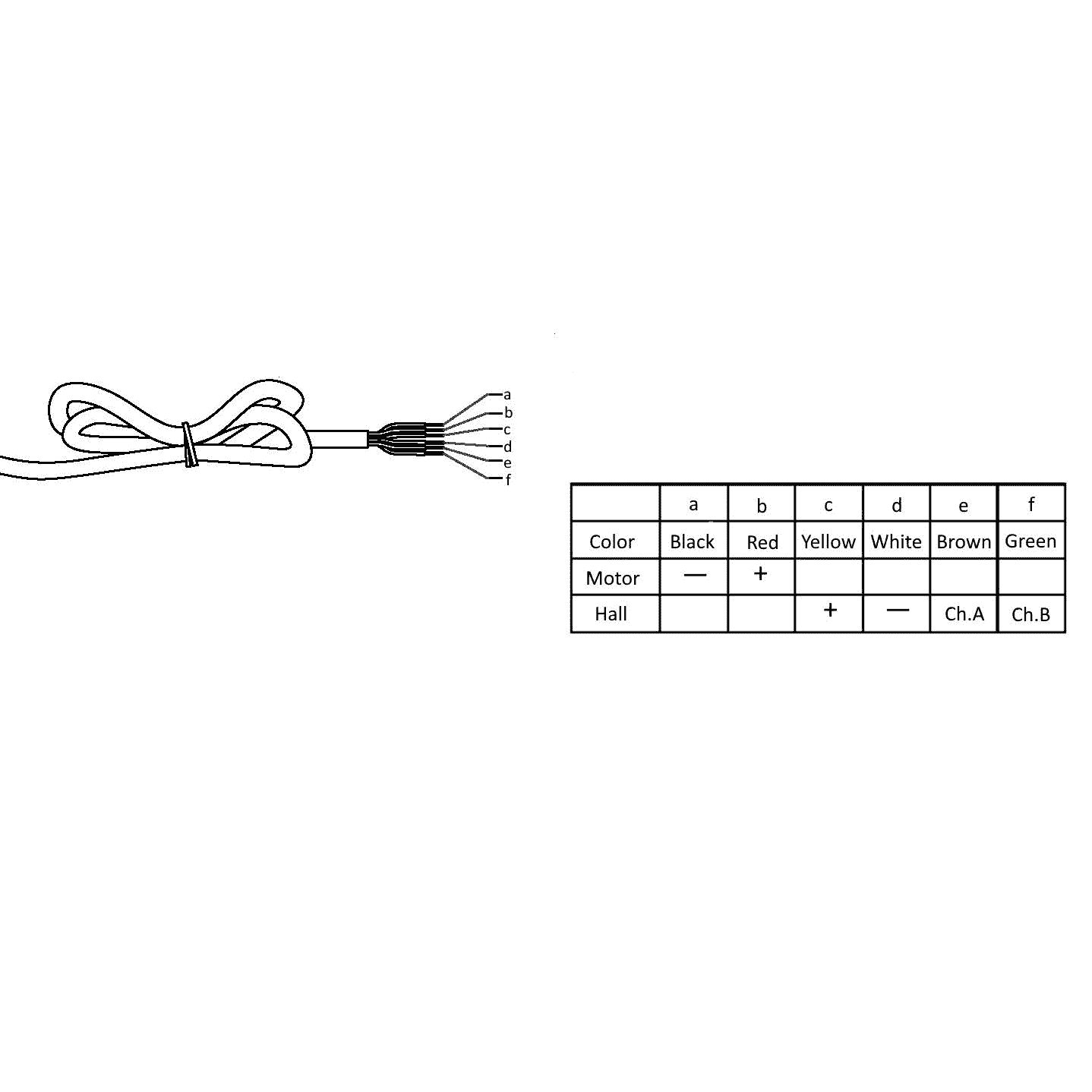

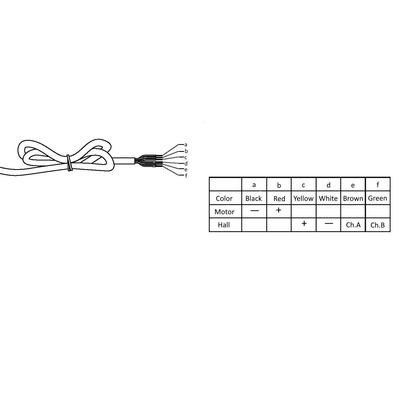

      Feedback Hall Effect Sensor
      Pulses per inch of travel 3500
      Feedback Voltage 5V
      Cable Length 1.5 feet
      Brackets

      MB36 , MB36C, MB36SM


      Stroke Length

      Retracted Length

      Extended Length

      Weight (lb)

      STEP File
      6" 16.34" 22.26" 2.4 FA-BH36-224-(F)-6
      8" 18.30" 26.20" 2.6 FA-BH36-224-(F)-8
      10" 20.27" 30.27" FA-BH36-224-(F)-10
      12" 23.42" 35.25" 3.15 FA-BH36-224-(F)-12
      14" 25.39" 35.19" 3.4 FA-BH36-224-(F)-14
      18" 30.51" 48.24" 3.95 FA-BH36-224-(F)-18
      22" 34.45" 56.12" 4.05 FA-BH36-224-(F)-22
      24" 36.45" 58.12" 4.25 FA-BH36-224-(F)-24
      Technical Drawings

      Curve Graphs
      36 Cal. Actuator Speed vs load graph
      Product Video

      Bullet Series 36 Cal. review

      Comparison Video

      Bullet Series 36 cal. vs 50 cal.
