Bullet Series 35 Cal. Linear Actuators

      Bullet Series 35 Cal. Linear Actuators

      CAD
      Model #
      Force
      Stroke
      Quantity
      qty limit cart limit
      In Stock

      Add Liquid error (snippets/form-product line 293): Could not find asset snippets/warranty-plus-text.liquid +8%
      Bulk Discount

      Save on your order when purchasing our Actuators in large volumes. Discount will be calculated at checkout. Due to new Trump tariffs, discounts over 20% have been removed until further notice

      Min. Quantity Discount
      11 20 % OFF
      31 25 % OFF
      50 30 % OFF
      200 40 % OFF
      View Cart

      Shipping Cost Estimator

      Note: You must have items in your cart already before you can see the estimated costs to ship your cart. This shipping tool will estimate the total shipping cost for your entire basket.

      Description

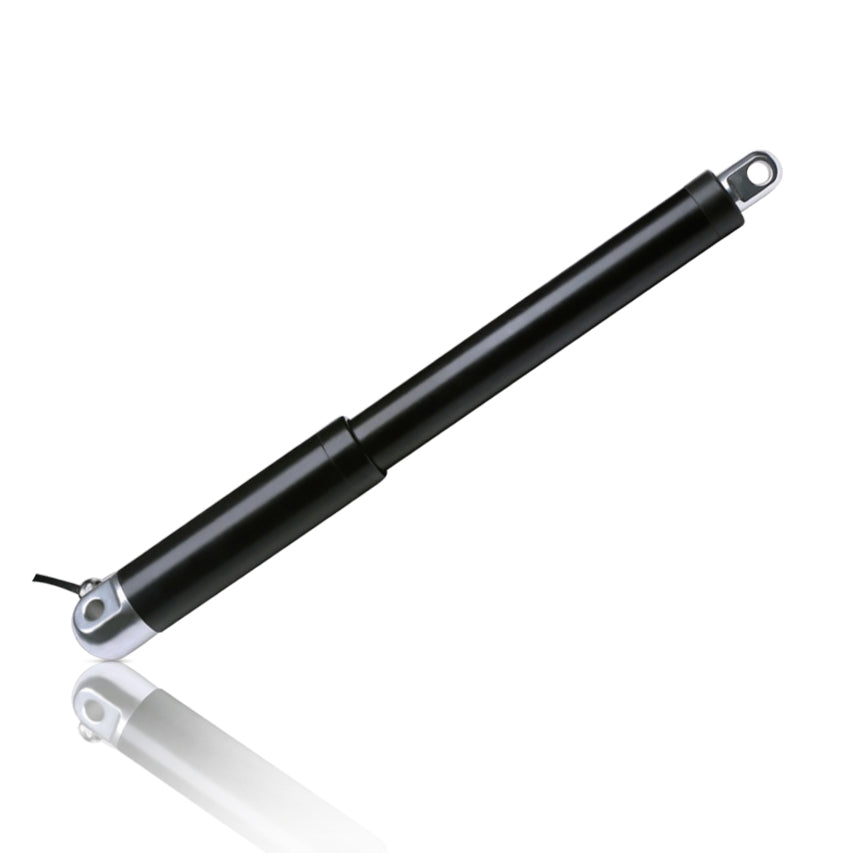

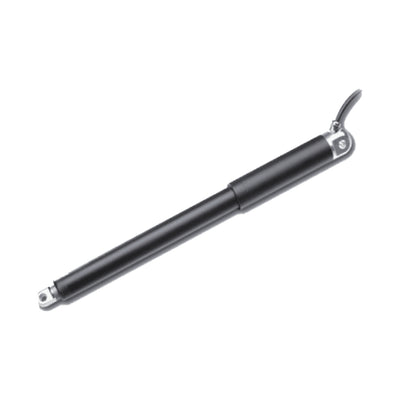

      The Bullet Series 35 Cal. Linear Actuator was developed to have a slim in-line motor design. They are light weight and are fitted with high quality Japanese motors to ensure a long life span and low operating noise with an IP61 rating. Ideal for applications such as powered skylight windows, hatch doors, trap door openers etc

      These Actuators come with an integrated force sensor, this means if they bump into something or when they get to the end of their stroke they automatically stop moving until you either change direction or remove the load. This is a better method for end of stroke limit switching and means that this model does not need internal limit switches - For adjustable limit-switch linear actuators try our new Adjustable limit switch Actuators.  The built-in over-current protection system is a great new safety mechanism and offers many applications from Skylight Window openers to Automotive motion control where space is tight.

      For further information review the specifications and technical drawings down below or visit our tutorials page for instructions on how to use this actuator with switches, remotes, speed controllers, and Arduino.

      Accessories sold separately include: Remote Controls - Switches - Micro-Controllers - Power Supplies

      Model FA-BS35-20-12-X FA-BS35-90-12-X FA-BS35-180-12-X FA-BS35-270-12-X
      Push/Pull Force 22 lbs. 90 lbs. 180 lbs. 270 lbs.
      Static Force 30 lbs. 135 lbs. 350 lbs. 400 lbs.
      Speed at no load 1.3”/sec  0.7”/sec  0.45”/sec  0.26”/sec
      Speed at full load 1.1"/sec 0.5"/sec 0.27"/sec 0.17"/sec
      Voltage 12V
      Max Current 3.8 amps
      Maximum Power 60W
      Duty Cycle 25%
      Temperature Range -20°C ~ 60°C
      IP Rating 61
      Noise Level 50-60 dB
      Backlash 0.01 ~ 0.03"
      Over Current Circuit Protection Built-in
      Circuit Breaking Current 4.5 amps
      Circuit Breaking Response Time 0.1 ~ 0.5 seconds
      Diameter 1.37" (35mm)
      Noise Level ~63 dbA @ 1'
      Outer Housing Material 6063 Aluminum
      Rod Material 304 Stainless Steel
      Lead Screw Trapezoid
      Material of nut Plastic
      Life Cycles 10k
      Feedback None
      Synchronous Capability None, 5-10% variation in speed
      Cable Length 5 feet
      Wire Size 16AWG
      Brackets MB35
      Stroke Length Retracted Length Extended Length Weight
      6" 13.87" 19.87" 1.7 lb.
      9" 16.87" 25.87" 2.2 lb.
      12" 19.87" 31.87" 2.4 lb.
      18" 25.87" 43.87" 3.5 lb.
      24" 31.87" 55.87" 3.7 lb.
      28" 35.87" 63.87" 3.95 lb.
      Force/current Speed/force

      Downloads / Drawings

      22lb's, 90lb's, 180lb's & 270lb's
      6 Inch
      9 Inch
      12 Inch
      18 Inch
      24 Inch
      28 Inch
      Force
      Actuator Stroke

      Download

      Stroke Image

      Videos


      super duty actuator video thumbnail

      Firgelli Actuator Production Video

      controlling speed of a linear actuator

      Related blog articles:

      What is an actuator

      Actuators - What is an Actuator?

      August 13, 2021

      Understand actuator basics and terminology to easily choose the right electric linear actuator for your needs.

      Controlling a linear actuator with an arduino

      How Do You Control a Linear Actuator with an Arduino?

      May 29, 2020

      Learn to control linear actuators with Arduino using relays, motor drivers, and inputs for advanced automation.

      Reverse Polarity

      Understanding Reverse Polarity: How it Works and When to Use it

      March 06, 2023

      Beginner's guide on reverse polarity in circuits, motors, and linear actuators, with practical applications explained.

      Stroke Length Retracted Length Extended Length Weight
      6" 13.87" 19.87" 1.7 lb.
      9" 16.87" 25.87" 2.2 lb.
      12" 19.87" 31.87" 2.4 lb.
      18" 25.87" 43.87" 3.5 lb.
      24" 31.87" 55.87" 3.7 lb.
      28" 35.87" 63.87" 3.95 lb.

      Yes we do. Our discount structure is based on volumes, so the more you buy the more you save its that simple. These volumes start at 11pcs or more.

      All actuators come with a 12 month warranty. This will protect you against manufacturer defects. User error and misuse will not be covered under warranty. Shipping and all costs pertaining to shipping will not be refunded.

      We also offer an optional Warranty Plus in which Your product will be replaced (including free shipping) with a new one within 12 months of purchase, even if it is damaged due to improper wiring, incorrect usage, a problem in the electrical installation or any other circumstance.

      When selecting the product which you want to order, only the in-stock items will be available to click on under the options. So if you can add it to your cart, it is in stock.

      We accept returns within the first 30 days. As long as the product is in new and unused condition, is in original packaging, and passes a thorough inspection, you will be eligible for a refund minus a 20% re-stocking fee (unless a replacement order is placed). Customer is responsible for the return shipping for any item ordered in error or no longer suitable.

      Please email sales@firgelliauto.com with your order number, description of the issue, part number, and quantity. We will evaluate your issue and send you an RMA form to print out and include in your return packaging.

      There are a few variables to consider, but we can simplify this greatly for you with the Actuator calculator we've built. This Calculator is based on the physics calculations our in-house team use every day; So, we decided to simplify it and make it available to everyone. If this calculator does not cover your application please, email us any diagrams, sketches, etc. and we will be glad to help.

      Yes, a FIRGELLI actuator can replace your old actuator. FIRGELLI offers a wide range of electric linear actuators with various specifications, including stroke length, force capacity, and mounting options. Before making a replacement, it's essential to consider the following steps:

      Compatibility Check: Compare the specifications of your old actuator with the FIRGELLI actuator you're considering. Ensure that the stroke length, force capacity, and mounting dimensions match or closely align with your requirements.

      Mounting and Connections: Check whether the mounting brackets, attachment points, and connection interfaces of the FIRGELLI actuator are compatible with your existing setup.

      Power Supply: Confirm that the power requirements (voltage, current) of the FIRGELLI actuator match your power supply or system specifications.

      Control and Feedback: If your old actuator had specific control features or feedback mechanisms, verify that the FIRGELLI actuator provides similar functionalities or offers compatible control options.

      Integration: Consider any modifications needed to seamlessly integrate the FIRGELLI actuator into your application. This could include adjusting mounting points, making electrical connections, or programming control signals.

      Consultation: If you're uncertain about compatibility or installation, feel free to reach out to FIRGELLI's customer support. They can provide guidance and recommendations based on your specific situation.

      For a more in depth guide on how to replace your old actuator, we have made a replacement actuator guide for you.
