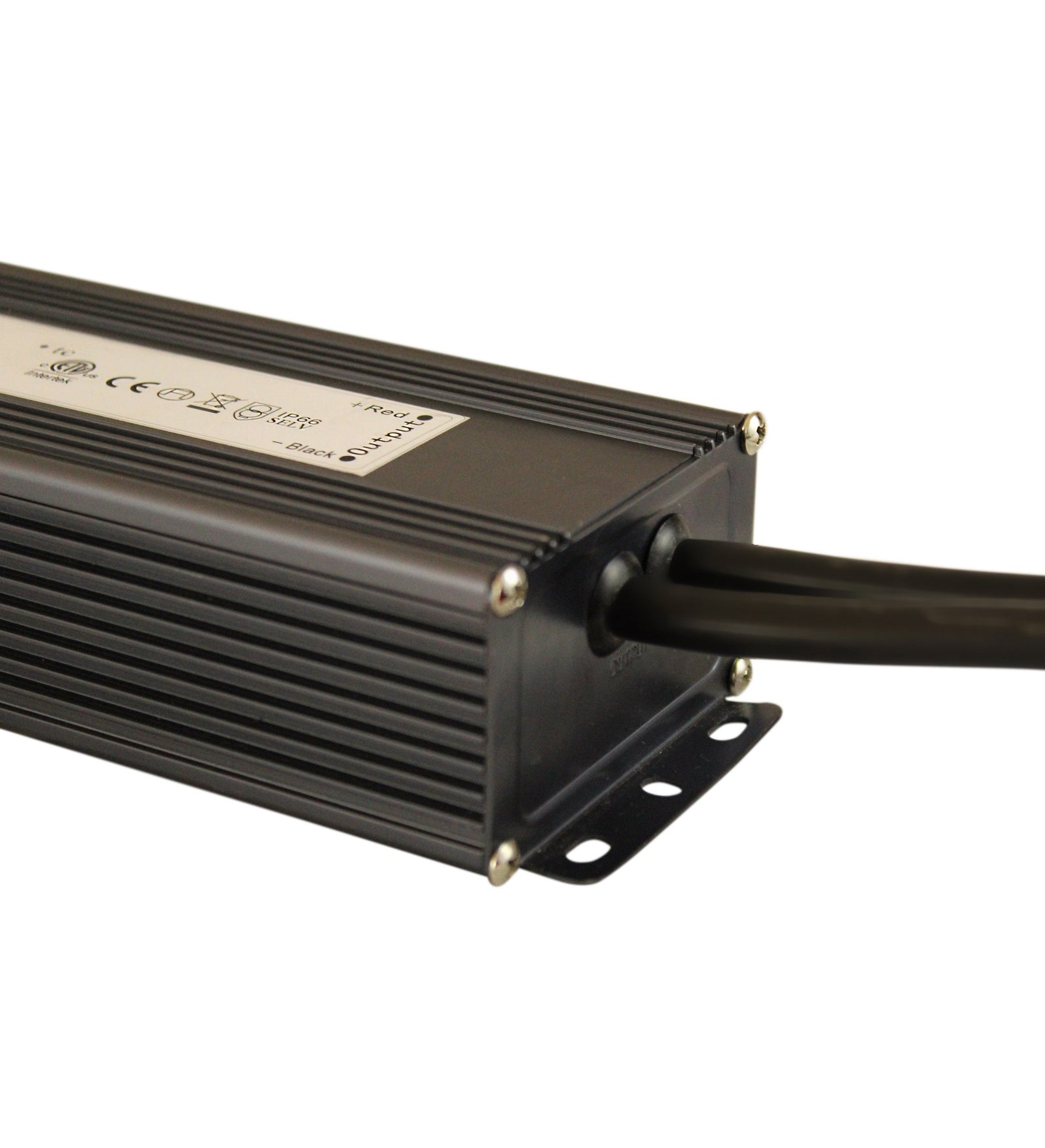

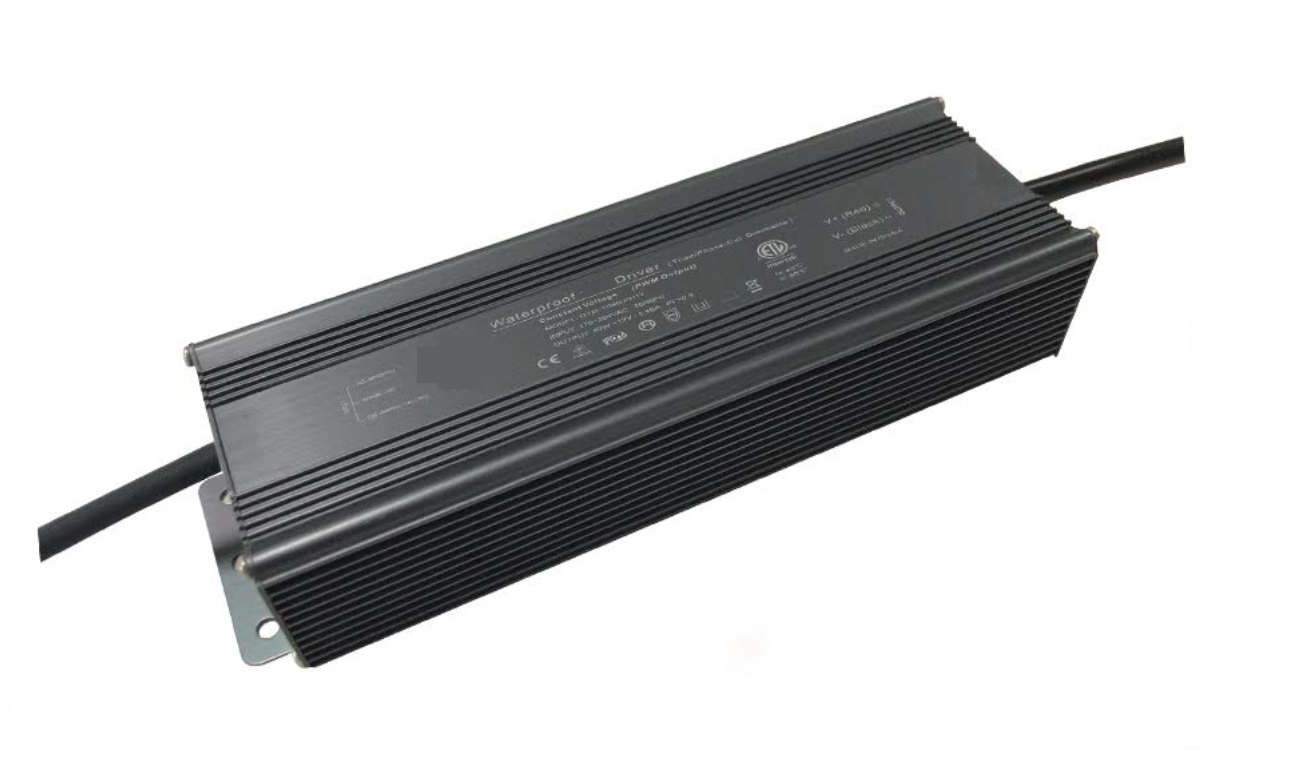

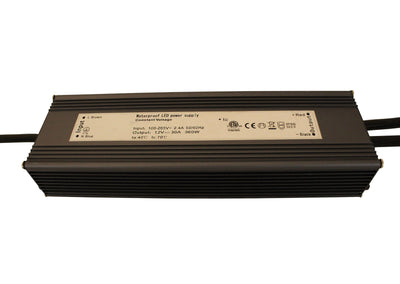

The Water Resistant LED 12V DC switch power supply is the most popular way to power your LED lighting products.The Universal AC inputs for both residential and commercial applications. The fully sealed enclosure will ensure that dust, debris, rain and other outdoor elements will not impact the functionality of the power supply.

Features

* Output constant voltage
* Universal AC input: 180 - 250VAC
* Built-In active power factor correction
* Cooling by free air convection
* Great for outdoor applications
* Inductive load type so ideal for high current start-up actuators like our Deluxe Rod, Heavy Duty Rod or Industrial Actuators.

Specifications

MODEL	FA-PA-12V-30A-IP66
OUTPUT VOLTAGE	12 Volt
VOLTAGE TOLERANCE	±0.5V
OUTPUT CURRENT	30 Amp
POWER	360 Watts
EFFICIENCY	86%
INPUT VOLTAGE RANGE	180 ~ 250VAC or 90 ~ 130 VAC
FREQUENCY RANGE	47 ~ 63 Hz
POWER FACTOR	≧0.6/220VAC
AC CURRENT	0.47A
LEAKAGE CURRENT	<0.70mA/220VAC
OVERLOAD PROTECTION	≦120%
TEMPERATURE	-40 ~ +60 ℃
TEMPERATURE COEFFICIENT	±0.03% (0~50 ℃)
VIBRATION	10 ~ 500 Hz, 2G 10 min/ 1 cycle
SIZE	276mm x 78mm x 47mm
WEIGHT	4.2 lbs.

Features

Specifications

Technical Drawing

Water Resistant LED Power Supply 12V 30A

Water Resistant LED Power Supply 12V 30A
