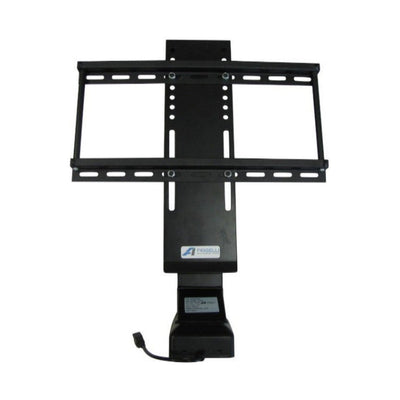

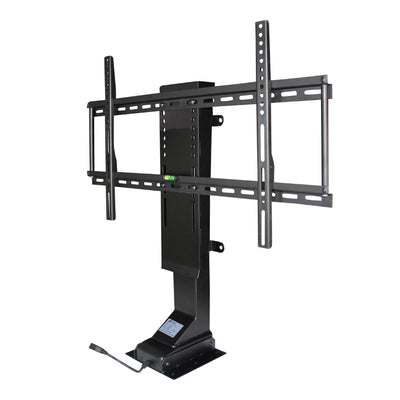

FA-TVL-180 Slim Pop-Up TV Lift

FA-TVL-180 Slim Pop-Up TV Lift

Firgelli Automations

$720.00 $800.00


Our Pop Up TV Lifts are suitable for home automation projects where you would like to keep your TV hidden out of sight, perhaps in a wall or cabinet, yet still be able to view it at the push of a button. These lifts can also be used up-side down for drop down TV lifts.

Model: FA-TVL-180-XX

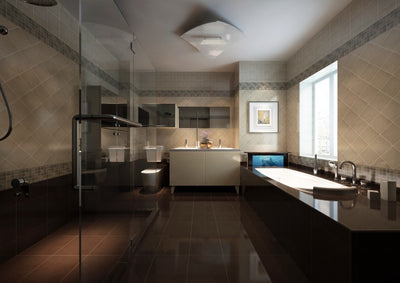

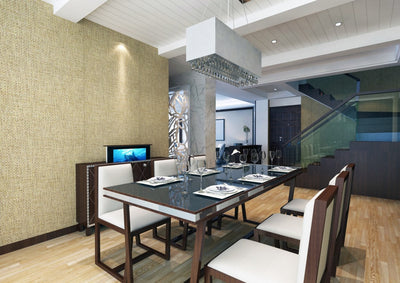

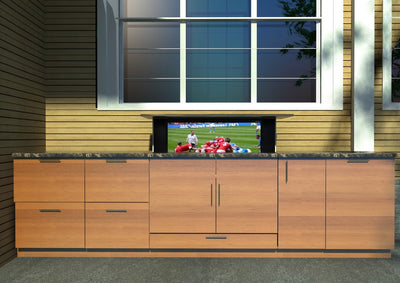

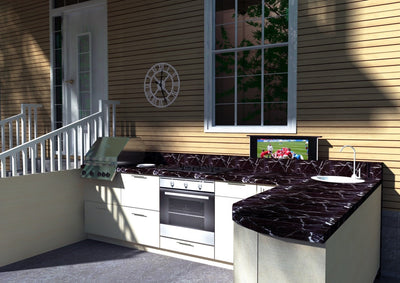

The Firgelli Pop-Up lift can be found on yachts, RV’s, modern kitchens, patio’s, stages, home theaters, and more all across the globe.

The desire of our engineering department was to create something that would be quiet enough to use at all hours of the day, whether in a  professional environment or at home, and could fit in the tightest of places for the ease of installation and operation. Due to this meticulous attention to detail, the Pop-Up lift typically takes fifteen minutes to install, and will operate at a whisper of 5 decibels above ambient sound levels; more technically inclined clients of ours enjoy building enclosures and works of art which incorporate the lift to showcase their televisions.

At Firgelli, we are well aware that not everyone has practiced their skills in carpentry, or electrical engineering. For this very reason we ensure that our products, especially our lifts, are user friendly and are as simple in operation/installation as possible. Easy to follow instruction manuals are included with all of our lifts, and provide all the information that you require from un-boxing to installation, and we include all the dimensions required to design custom fit enclosures. This model can also be used as a Drop Down.

All of our TV lift apparatus’ come backed by our 12 month comprehensive warranty.









Retracted Length




Extended Length




TV Sizes

25” – 60”

Input Voltage

110 VAC or 230 VAC


135 lbf.

Lifting Speed

0.87”/second (with load)

Duty Cycle

10%, max 2 min. continuous use

Operating Temp.

+5° C - +40° C

Overload Protection



Powder Coated Steel

Additional Features

Adjustable Height

TVL-180 Bracket DimensionsTo download the instruction manual for the FA-TVL-180 TV Lift, please click here

TVL-180 Lift Dimensions

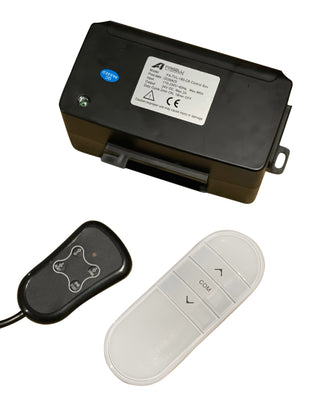

1. When the unit stops  and if the red light on the control box flashes, it indicates overload or “time protection”.The lift cannot be operated up/down continuously for more than 2 minus, if it is, then it goes into “time protection” mode and needs a reset or a 20 mins wait time.


2. The red and black buttons on the control box are only for setting the limits of the lift travel: black-lower, red –upper. Once set you don’t touch them unless you press “reset” on the wired manual control switch.


To set the limits: Press the red button on the control box and the UP button on the handset simultaneously for 10 seconds . Release both the buttons when it reaches the height you want it to be max height.Similarly  for the black button: this sets the lower limit.



3. Wireless remote pairing:Press the STUDY button on the hand wired control and any button on the wireless remote . The led on the hand wired will flash and go off, release both. The remote should now work. Two buttons must be pressed together to make the Lift move. You must press both COM and either UP or Down on the wireless  remote.
