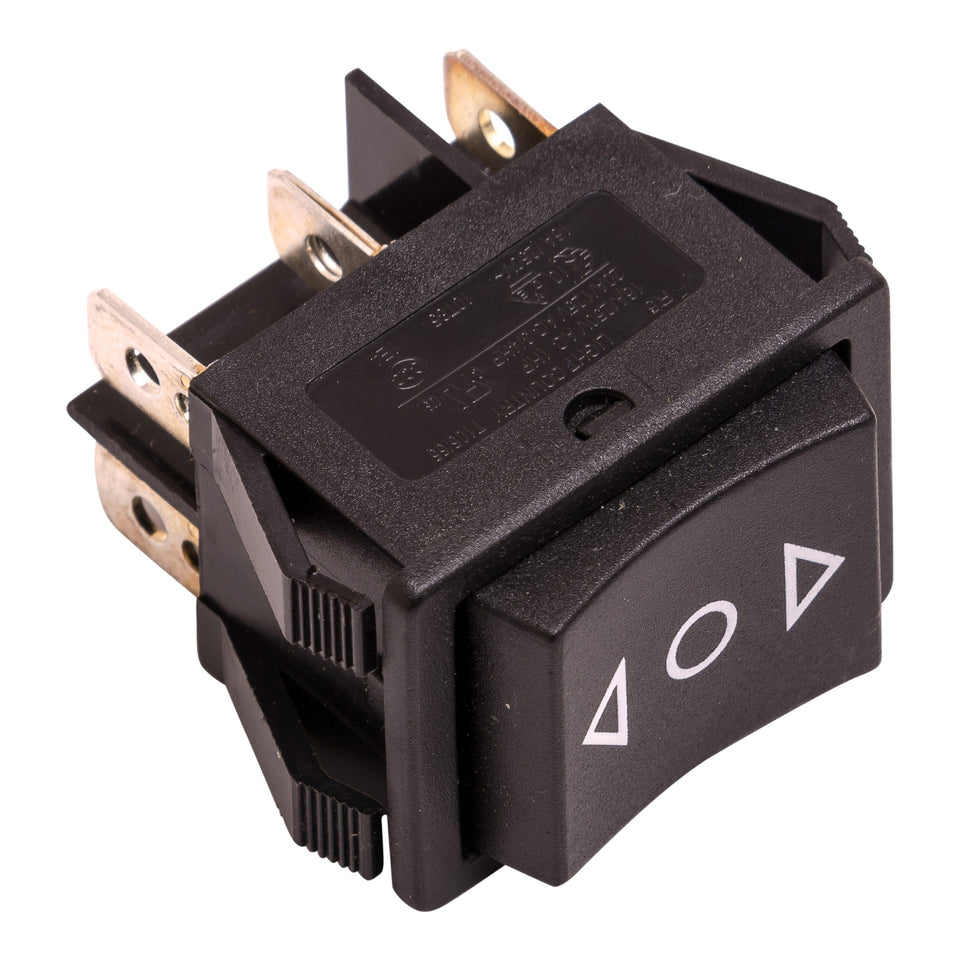

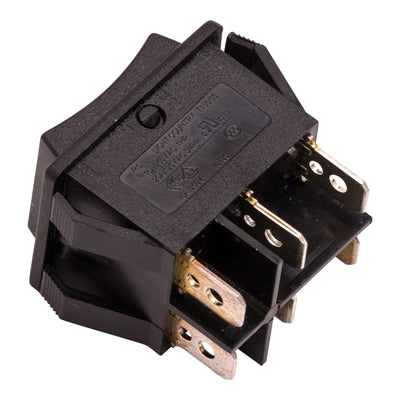

Flush mounting DPDT (Double Pole Double Throw) Rocker Switches for Linear Actuators and other DC Motors - Momentary or Sustaining option

  • Model # MAN-RS2 Momentary
  • Model # MAN-RS Sustaining
  • Dash mountable
  • 3-position rocker switch: up/off/down spring loaded to return to the off position for Momentary or stays in position for Sustaining.
  • Push the switch and hold for the direction you want, actuator stops at the full stroke position, and is spring loaded to return to the middle/off position when you let go of the switch if you buy the monetary option, or just stay in position if you buy the sustaining model.
Technical Drawings

Linear Actuator or motor Rocker switch



Linear Actuator wiring Diagram for a Rocker switch

Linear Actuator wiring Diagram for a Rocker switch

Wiring Diagram
