Description

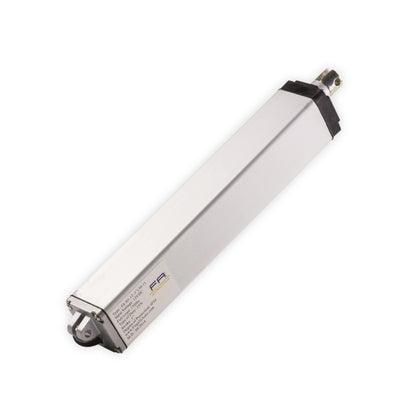

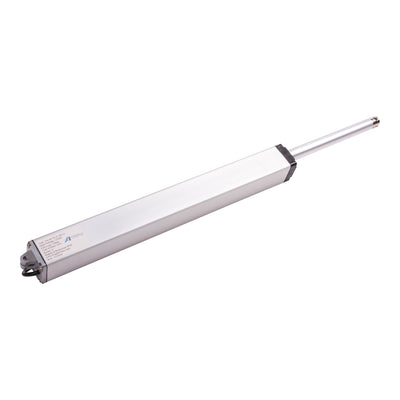

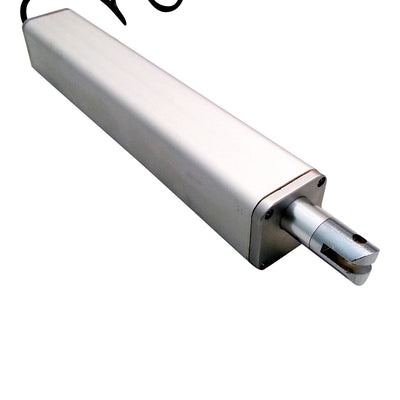

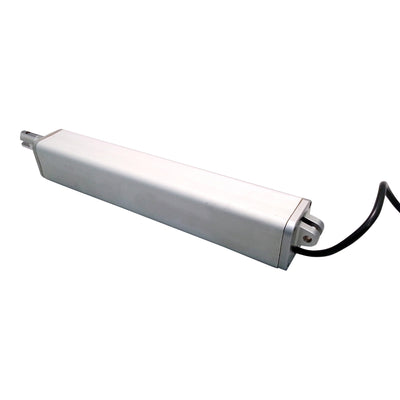

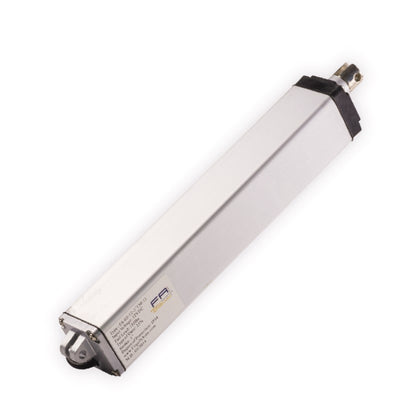

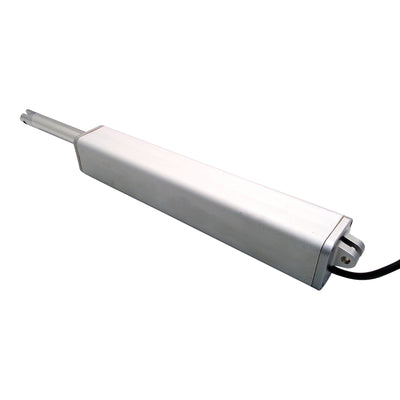

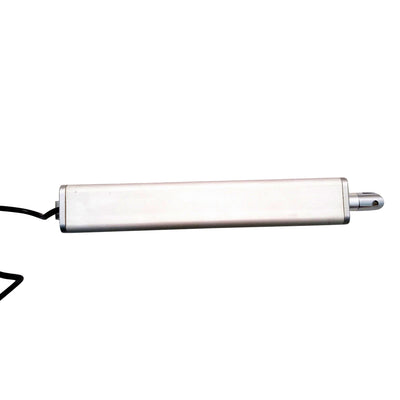

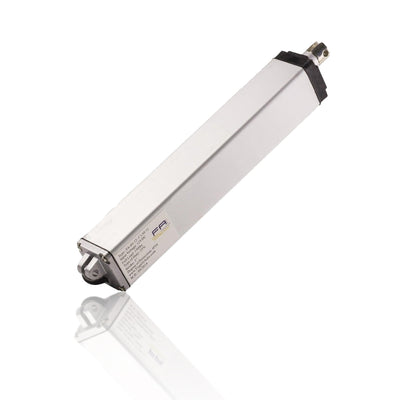

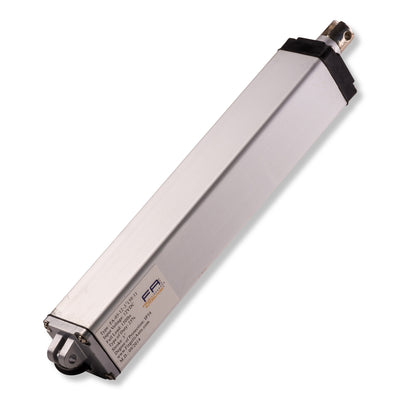

Our Sleek Rod Actuator line was produced for applications which require a clean looking, modern appearance instead of having a hidden system. The minimalist presentation of these units and angular lines make this actuator line-up worthy as a showpiece itself. The unit comes in two force variations: 40 lbs and 150 lbs. Both dynamic force variations are quiet and smooth in operation. For those who want a good looking, high quality linear actuator to fulfill their project needs, this is the solution for you. All variations of the Sleek Road Actuator line feature built in factory limit switches, internal dynamic O-rings for water protection which provides an IP Rating of 54, as well as clevis mounting points at both ends for versatility.

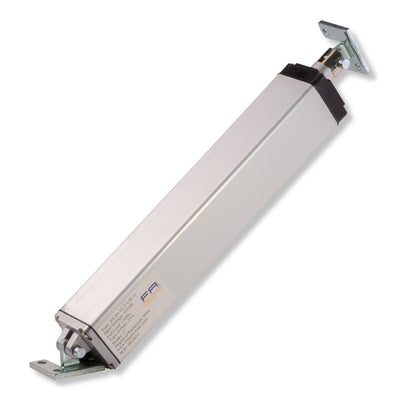

MB2 Mounting Brackets are used with these models.
Specifications
| Model | FA-04-12-XX | FA-05-12-XX |
| Dynamic Force | 40 lb | 150 lb |
| Static Force | 80 lb | 300 lb |
| Speed ("/S) | 1" | .5 |
| Duty Cycle | 25% | |
| IP Rating | 54 | |
| Input | 12v DC | |
| Operational Temperature | -26°C/65°C (-15°F/150°) | |
| Limit Switch | Built-in (factory preset) | |
| Safety Certifications | CE, ROHS | |
| Bracket(s) | MB2 | |
| Draw at Full Load | 3 Amps | |

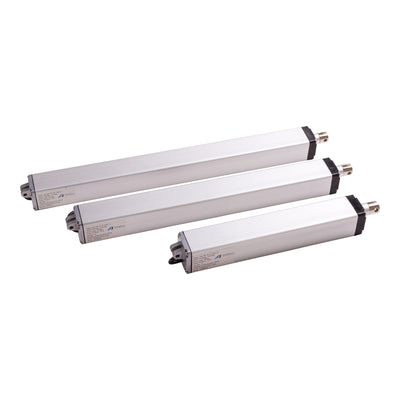

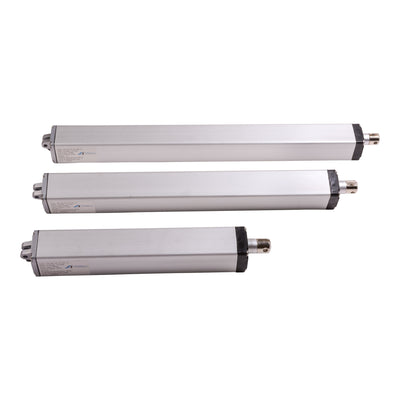

| Stroke | Retracted Length | Extended Length | Weight |
| 3" | 11.5" | 14.5" | 2.5 lbs |
| 6" | 14.5" | 20.5" | 2.9 lbs |
| 9" | 17.5" | 26.5" | 3.25 lbs |
| 12" | 20.5" | 32.5" | 3.7 lbs |
| 18" | 26.5" | 44.5" | 4.5 lbs |
| 24" | 32.5" | 56.5" | 5.3 lbs |
| 30" | 38.5" | 68.5" | 6.5 lbs |
